Fuel pump module, removing and installing: Installing
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Install fuel pump module in reverse order of removal.
NOTE:
- When installing the fuel pump module, be sure that the fuel level sensor arm is not bent.
- Coat flange seal with fuel when installing.

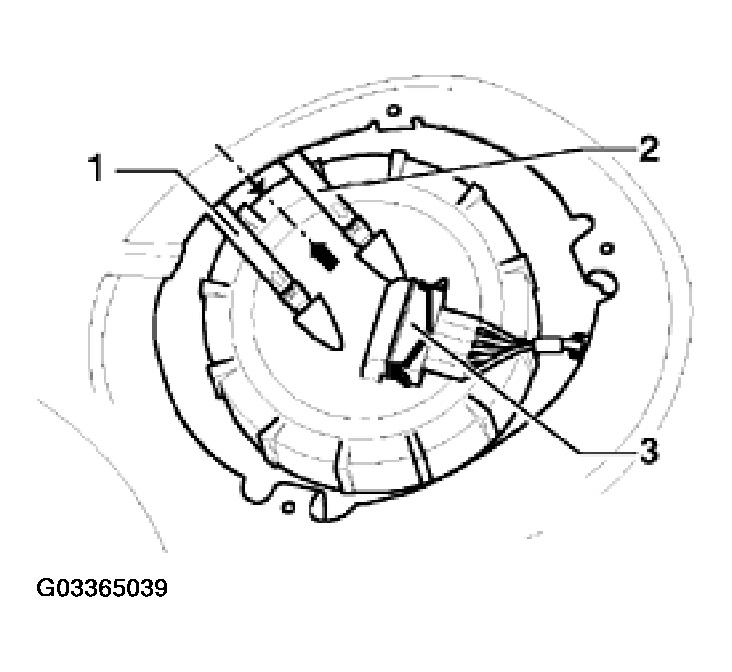

- Fuel delivery unit flange, installed position, see ACCELERATOR PEDAL CABLE, ADJUSTING and Figure .

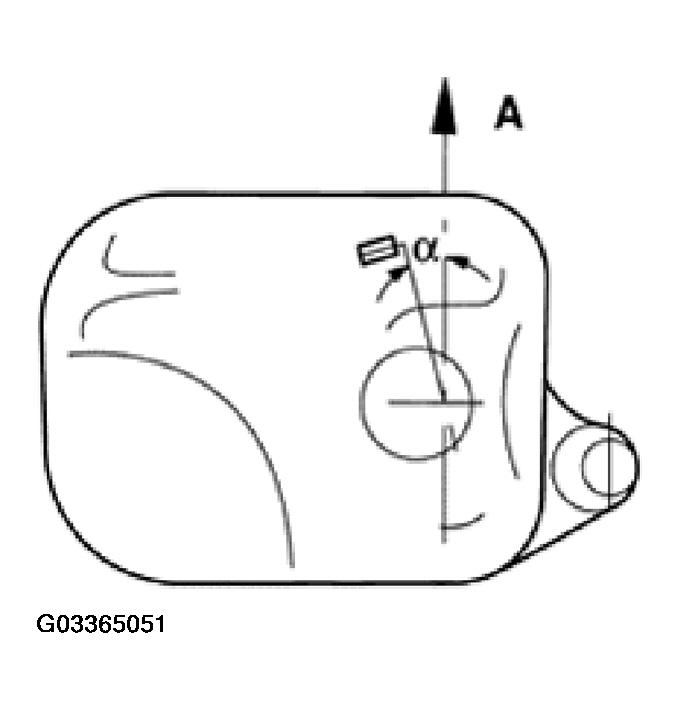

- When module is correctly assembled, the fuel level sensor float points forward at angle -ALPHA- to vehicle direction of travel -A-. See Fig 1 .
When the fuel pump module is correctly installed the fuel level sensor float points to direction of travel -A-.
ALPHA = 5°
