Checking conditions

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Battery positive voltage (B+) supply OK
VAG1348/3A remote control connected. See FUEL PUMP, CHECKING

Remove fuel filler cap.
Disconnect fuel supply line -1- from fuel rail.
Connect VAG1318 pressure gauge with VAG1318/10 adapter to fuel supply line.

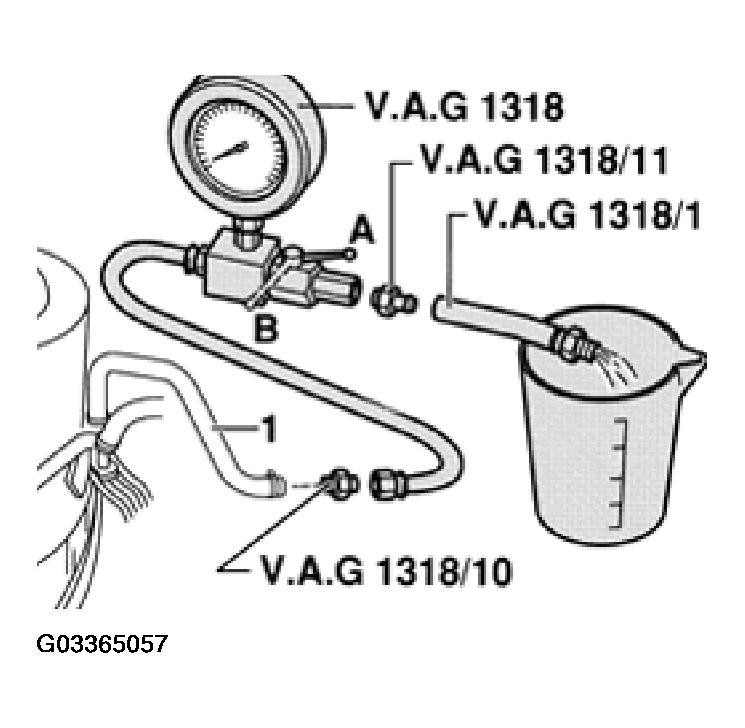

Fig 1: Connecting VAG1318 Pressure Gauge With VAG1318/10 Adapter To Fuel Supply Line
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Connect VAG1318/1 hose to pressure gauge with VAG1318/11 adapter, and hold in measuring container.
Open shut-off valve on pressure gauge (lever in direction of flow).
While operating VAG1348/3A remote control, close shut-off valve slowly until gauge reads 3 bar (44 psi). Do not change position of shut-off valve.
Empty measuring container.
Operate VAG1348/3A remote control for 30 seconds.
Compare fuel quantity with specified value.

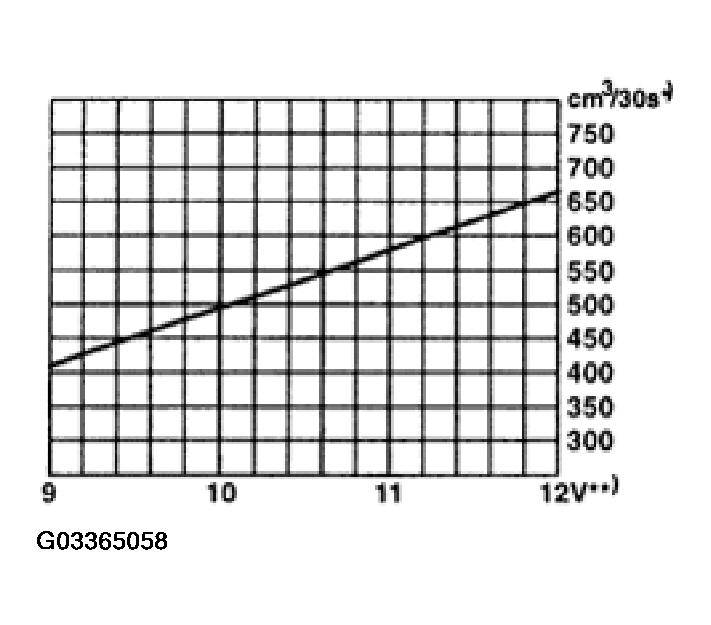

Fig 2: Graph Of Fuel Quantity Specified Values
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: The following asterisk items refer to graph in Fig 2 .

* minimum fuel amount measured in cm ³ /30 sec.

** voltage at fuel pump with engine OFF and fuel pump running (approx. 2 volts less than battery positive voltage B+).

If fuel delivery quantity does not meet or exceed minimum from graph, check for the following causes:
- Fuel line kinked or obstructed
- Fuel filter obstructed
- Fuel pump malfunctioning
Replace Fuel Pump (FP) module or fuel pump.

If minimum fuel delivery is still not attained:

Pull fuel supply line -1- off inlet to fuel filter.

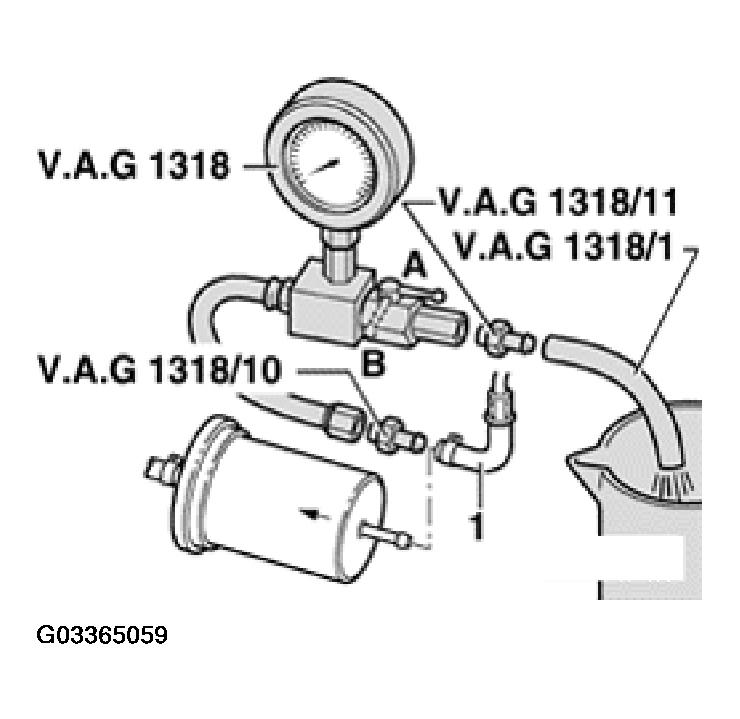

Fig 3: Pulling Fuel Supply Line Off Inlet To Fuel Filter
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Connect VAG1318 pressure gauge to fuel line using 1318/10 adapter.
Repeat delivery check.

If minimum fuel delivery is still not attained:

Replace fuel filter.

If minimum fuel delivery is still not attained:

Remove fuel delivery unit and check filter for contamination.

If at this point no malfunction has been detected:

Replace fuel delivery unit.

If the delivery rate has been attained, but a fuel system malfunction is still suspected (for example, intermittent failure of the fuel supply system), check amperage draw of fuel pump as follows:

Reconnect all disconnected fuel lines.
Connect multimeter VAG 1715 (Fluke 83 or equivalent) to the red/yellow wire from harness connector using Fluke amperage measurement adapter.

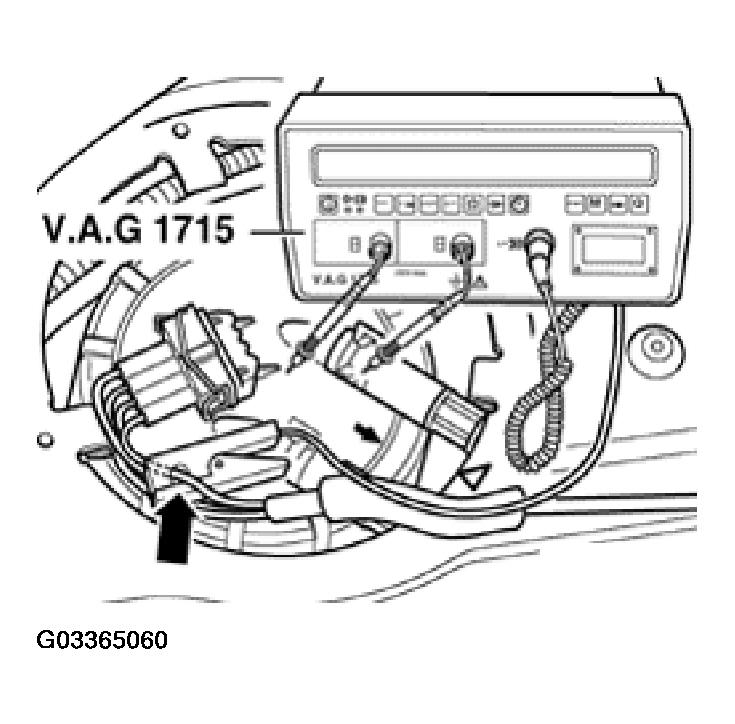

Fig 4: Connecting Multimeter VAG 1715 To Red/Yellow Wire From Fuel Pump Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Start engine and let idle.
Measure current draw of fuel pump.

Specification: 8 amps maximum

NOTE: If the fuel system malfunction is intermittent, you can perform the check during a test drive using a second technician.

If the amperage draw is exceeded:

Replace fuel delivery unit.
