Checking conditions

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

VAG1348/3A remote control connected, see FUEL PUMP, CHECKING
VAG1318 pressure gauge connected, see FUEL PUMP DELIVERY RATE, CHECKING

NOTE: This test also checks the connections of the fuel supply line from fuel pump/sender to the connection of VAG1318 pressure gauge.

Close pressure gauge valve (lever in line with flow direction).

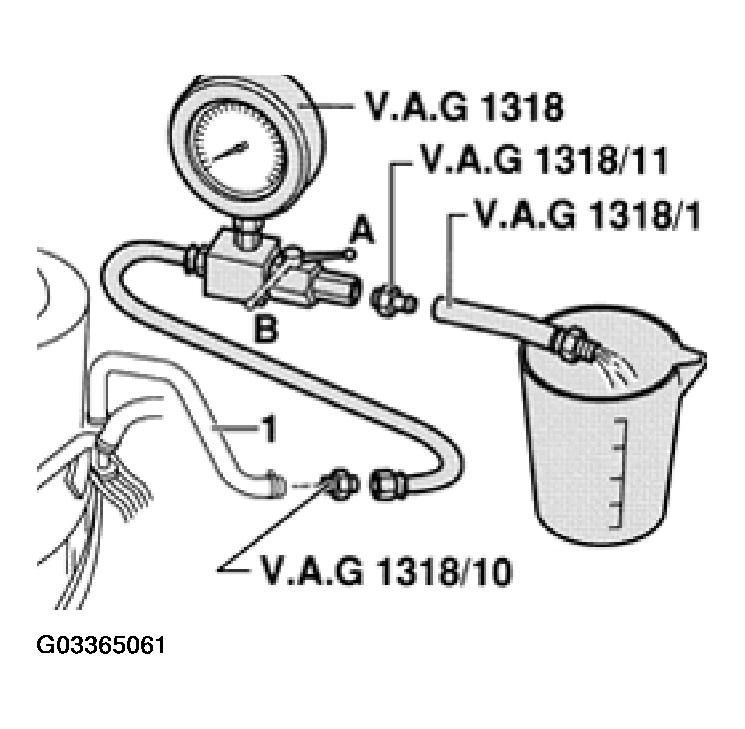

Fig 1: Checking Fuel Pump Check Valve
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Operate VAG1348/3A remote control in short intervals.

Pressure must reach approx. 3 bar (44 psi).

If pressure builds up too high, reduce pressure carefully by opening pressure gauge valve.

CAUTION: When valve lever is moved, fuel may spray from open connection on gauge. Use container to catch fuel.

Note pressure drop.
- After 10 minutes pressure must not drop below 2 bar (29 psi).
If necessary, check hose connections for leaks or replace fuel pump/fuel level sensor.
