Leak Detection Pump, resistance checking
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect 3-pin harness connector from Leak Detection Pump -V144-.
- Switch Fluke 83 multimeter to resistance range.

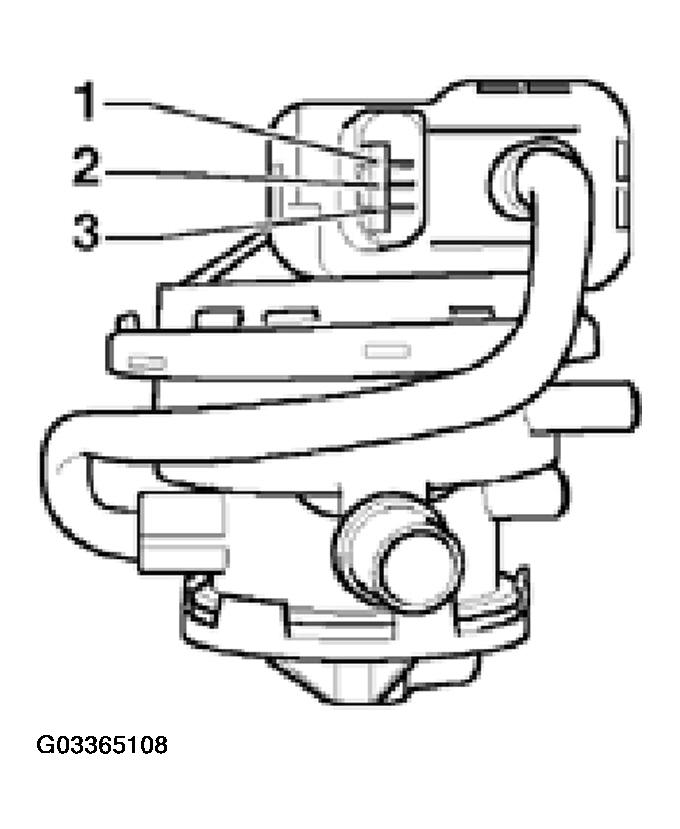

- Connect Fluke 83 multimeter between terminals 1 and 3 of Leak Detection Pump -V144- and measure resistance.
- Specification: 640 to 720 ohms
- Connect Fluke 83 multimeter between terminals 2 and 3 of Leak Detection Pump V144 and measure resistance.
- Specification: 12.5 to 19.5 ohms
If specifications not obtained:
- Replace Leak Detection Pump -V144-.
If specifications OK:
- Replace Motronic Engine Control Module (ECM) -J220-.
