Evaporative emissions system, overview, Vehicles up to 1996
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

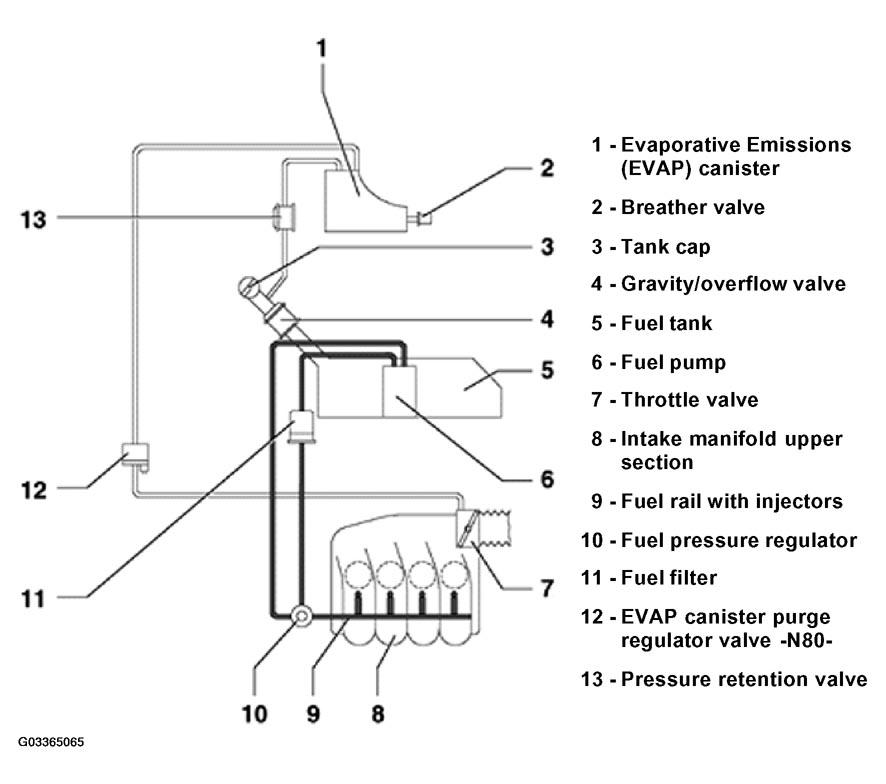

The following list pertains to Fig 1 .
- Evaporative Emissions (EVAP) canister
- Breather valve
- Tank cap
- Gravity/overflow valve
- Fuel tank
- Fuel pump
- Throttle valve
- Intake manifold upper section
- Fuel rail with injectors
- Fuel pressure regulator
- Fuel filter
- EVAP canister purge regulator valve -N80-
- Pressure retention valve
