EVAP system components, servicing, Vehicles up to 1996

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: From 08.95 to 10.95 vehicles were produced with a Leak Detection Pump (LDP) installed, but NOT activated. Beginning 11.95 the pump was no longer installed. The pump was then reintroduced for the 1997 model year. See LEAK DETECTION PUMP, CHECKING .

The following list pertains to Fig 1 .

2-pin harness connector
Evaporative Emission (EVAP) canister purge regulator valve -N80-
- Blue, Normally open
- Aprox. 5 seconds after ignition is switched off, valve is open in direction of arrow.
- Valve is controlled (cycled) by engine control module when engine is warm.
- Activation, checking
See appropriate On Board Diagnostic (OBD) article.
- Function, checking, see EVAP CANISTER PURGE REGULATOR VALVE -N80-, CHECKING, VEHICLES UP TO 1996
Bracket on Air Cleaner (ACL) housing, lower
Retainer
Throttle valve
From gravity valve
- See FUEL TANK WITH ATTACHING PARTS AND FUEL FILTER, REMOVING AND INSTALLING, VEHICLES 2000 AND UP , item -34-
Evaporative Emissions (EVAP) canister
- In right front wheelhousing
- Press safety clasp in direction of arrow to remove

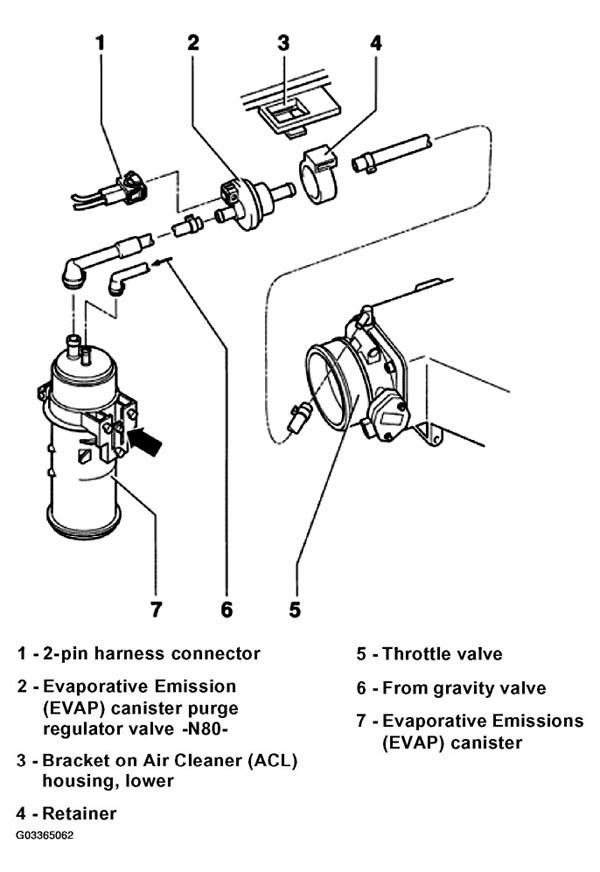

Fig 1: Identifying EVAP System Components (Up To 1996 Vehicles)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
