EVAP system components, servicing, Vehicles 1997-1999
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

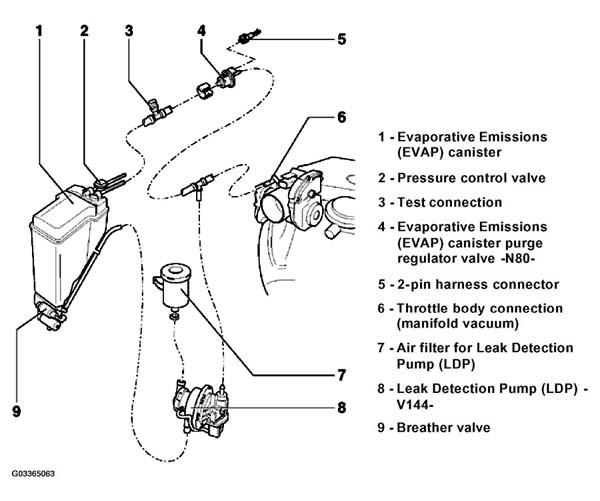

The following list pertains to Fig 1 .
- Evaporative Emissions (EVAP) canister
- In right front wheelhousing
- Pressure control valve
- Flow from fuel tank
- Test connection
- Evaporative Emissions (EVAP) canister purge regulator valve -N80-
- Black
- Normally closed
- Activation, checking
See appropriate On Board Diagnostic (OBD) article.
- Function, checking, see EVAP CANISTER PURGE REGULATOR VALVE -N80-, CHECKING, VEHICLES 1997-1999
- 2-pin harness connector
- Throttle body connection (manifold vacuum)
- Air filter for Leak Detection Pump (LDP)
- Leak Detection Pump (LDP) -V144-
- Checking, see LEAK DETECTION PUMP, CHECKING
- Breather valve
