Functional check

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Check EVAP canister. See EVAPORATIVE EMISSIONS SYSTEM, CHECKING, VEHICLES UP TO 1996 .

NOTE: During the EVAP canister check the open condition of the EVAP canister purge regulator valve is also checked.

If vacuum does not build up:

Connect VAG 1598/18 test box to Engine Control Module (ECM) wiring harness.

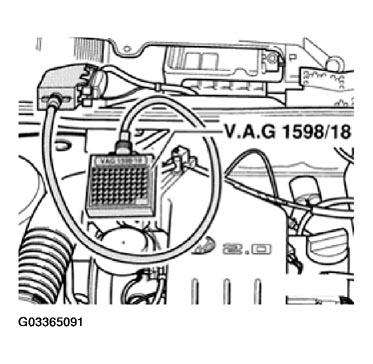

Fig 1: Connecting VAG 1598/18 Test Box To Engine Control Module (ECM) Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Using VW 1594 adapter kit, bridge the following test box sockets: 1 + 9 and 1 + 31
Operate VAG 1390 hand vacuum pump (or US8026) several times.
- Vacuum must build up

If vacuum does not build up:

Replace EVAP canister purge regulator valve -N80-.
