Functional check

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Connect VAG 1551/1552 Scan Tool.

See ON BOARD DIAGNOSTIC (OBD) - 2.0L, ABA .

Start engine and let idle.
Press buttons -0- and -1- to select "Engine electronics" address word 01.

Display will appear as shown

Fig 1: Displaying: Select Function XX

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -0- and -8- to select "Read measuring value block" function 08.
Press -Q- button to enter input.

Display will appear as shown

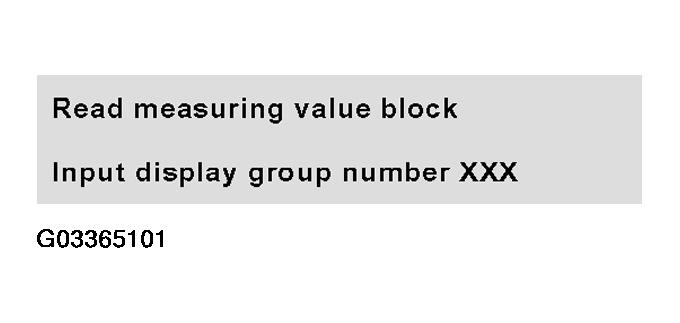

Fig 2: Displaying: Read Measuring Value Block

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -0-, -7- and -0- to select "Display group 70".
Press -Q- button to enter input.

Display will appear as shown (1 to 4 = Display fields)

Fig 3: Displaying: Read Measuring Value Block 70

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -0- and -4- to select "Basic setting" function 04.
- Tank venting valve diagnostic will be initiated

NOTE: Engine must not be under load during this time because diagnosis will be interrupted and will not restart until engine is accelerated.

Display will appear as shown (1 to 4 = Display fields)

Fig 4: Displaying: System In Basic Setting 70

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: When diagnosis is initiated by ECM, display in field 4 changes from "Test OFF" to "Test ON".

Run engine at idle until specification "TEV OK" is displayed in field 4.
NOTE: If display changes from "Test ON" to "Test OFF" during test, briefly raise engine speed and test will repeat.

DISPLAY GROUP 70: EVAPORATIVE EMISSIONS SYSTEM DIAGNOSIS (TANK VENTING SYSTEM) - 2000 AND UP

	Display fields
	1	2	3	4
Display	xxx %	xx.x %	xx.xx g/s	Test OFF/Test ON TEV OK TEV not OK
Indicated	Opening of solenoid valve during diagnosis	Oxygen control deviation during diagnosis	Idle control deviation during diagnosis	Diagnostic conditions and diagnostic results
Working range	0 to 100 %	-25.0 to 25.0 %	-2.7 to 2.8 g/s :	-
Spec.	-	-	-	TEV OK

If "TEV not OK" appears in display field 4:

Perform Output Diagnostic Test Mode and activate EVAP canister purge regulator valve N80.

See ON BOARD DIAGNOSTIC (OBD) - 2.0L, ABA .

Check DTC memory.

See ON BOARD DIAGNOSTIC (OBD) - 2.0L, ABA .

Display Readiness code.

See ON BOARD DIAGNOSTIC (OBD) - 2.0L, ABA .

The Readiness code must be reset if the ECM is subject to low voltage with the ignition ON or if the DTC memory is erased.

See ON BOARD DIAGNOSTIC (OBD) - 2.0L, ABA .

If specification "TEV OK" obtained:

Press -->button.

Display will appear as shown

Fig 5: Displaying: Select Function XX

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -0- and -6- to select "End transfer" function 06.
Press -Q- button to enter input.
Switch ignition off.
