Flushing procedure
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Engine at normal operating temperature (heater valve open where applicable)
- Coolant drained
- Apply compressed air to expansion tank to help blow out remaining coolant.
- Close cooling system, fill with distilled water, then run engine for minimum of 2 minutes.
- Drain cooling system and apply compressed air to expansion tank to help blow out remaining water.
- Close cooling system and fill with appropriate mixture of "G12" coolant additive and distilled water, see COOLING SYSTEM, DRAINING AND FILLING .
- Test drive vehicle and top off coolant level if necessary.
CAUTION:
- Never reuse old coolant.
- Dispose of old coolant properly.
- Coolant G 012 A8D A1 may only be used in older vehicles after the original coolant is drained and the cooling system flushed as described above otherwise engine damage can result.
- Part numbers listed are for reference only. Always check with the Parts department for the latest information.
Recommended mixture ratios:
RECOMMENDED COOLANT MIXTURE RATIOS
| Protection to (temperature) | Coolant percentage(1) | Coolant(2) | Water(2) | ||||
|---|---|---|---|---|---|---|---|
| -25 °C (-13 °F) | 40% | 2.2 liters (2.3 qt.) | 3.3 liters (3.5 qt.) | ||||
| -35 °C (-36 °F) | 50% | 2.75 liters (2.9 qt.) | 2.75 liters (2.9 qt.) | ||||
|
|||||||

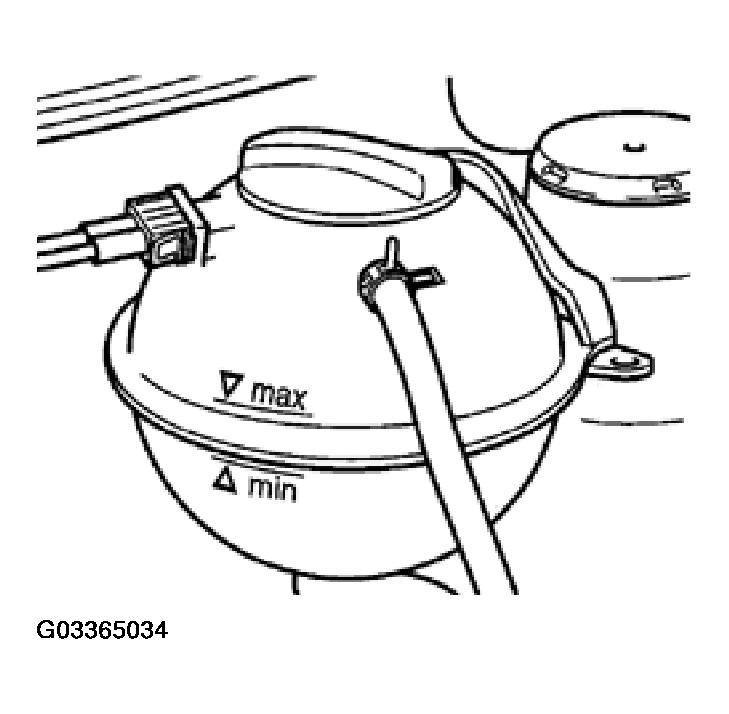

- Fill coolant to MAX mark on expansion tank.
- Close expansion tank (install cap).
- Let engine run until coolant fan -V7- comes on.
- Check coolant level and top off if necessary.
- With engine at operating temperature coolant level must be at MAX mark
- With cold engine coolant level must be between MIN and MAX marks
