Cooling system components, body side
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

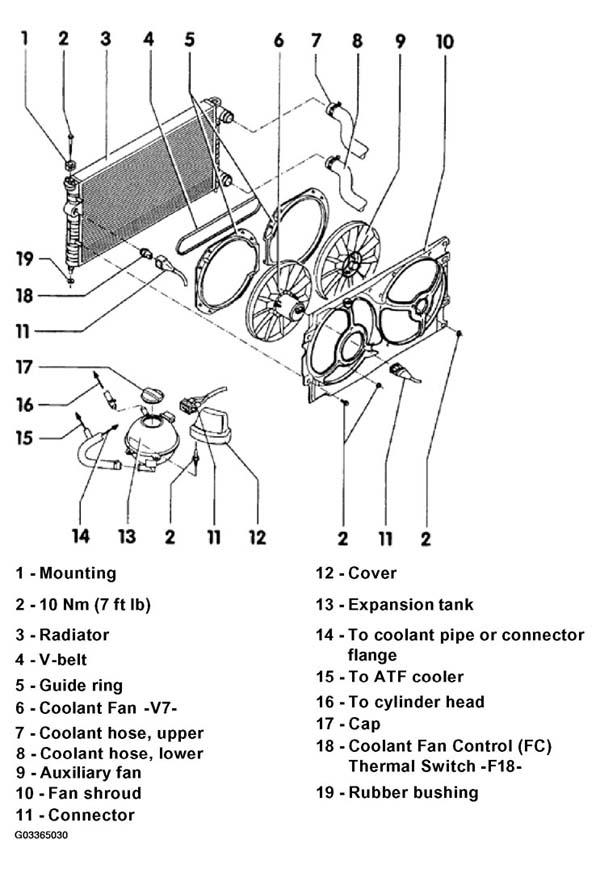

The following list pertains to Fig 1.
- Mounting
- 10 Nm (7 ft lb)
- Radiator
- Removing and installing, see RADIATOR AND COOLANT FAN, REMOVING AND INSTALLING
- After replacing radiator, replace all engine coolant
- V-belt
- Only with optional equipment
- Guide ring
- Note installation position
- Attached to fan shroud, item 10, with clips
- Coolant Fan -V7-
- Removing and installing, see RADIATOR AND COOLANT FAN, REMOVING AND INSTALLING
- Coolant hose, upper
- To connector pipe, see COOLING SYSTEM COMPONENTS, ENGINE SIDE , item - 1 -
- - Coolant hose, lower
- To coolant pump, see 6
- Auxiliary fan
- Only with optional equipment
- Removing and installing, see RADIATOR AND COOLANT FAN, REMOVING AND INSTALLING
- Fan shroud
- Note installation position
- Connector
- Cover
- Expansion tank
- To coolant pipe or connector flange
- Vehicles with manual transmission, see 13
- Vehicles with automatic transmission, see COOLING SYSTEM COMPONENTS, ENGINE SIDE , item - 9 -
- To ATF cooler
- For vehicles with automatic transmission
- To cylinder head
- See COOLING SYSTEM COMPONENTS, ENGINE SIDE , item - 6 -
- Cap
- Check with VAG1274 and VAG1274/4
- Test pressure: 1.3-1.5 bar (19-22 psi)
- Coolant Fan Control (FC) Thermal Switch -F18-
- Tightening torque: 35 Nm (26 ft lb)
Switching temperatures, 1st stage:
- ON: 92 -97 °C (197-206 °F)
- OFF: 84-91 °C (183-195 °F)
Switching temperatures, 2nd stage:
- ON: 99 -105 °C (210-221 °F)
- OFF: 91-98 °C (195-208 °F)
- Tightening torque: 35 Nm (26 ft lb)
- Rubber bushing
