Coolant pump, disassembling and assembling
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

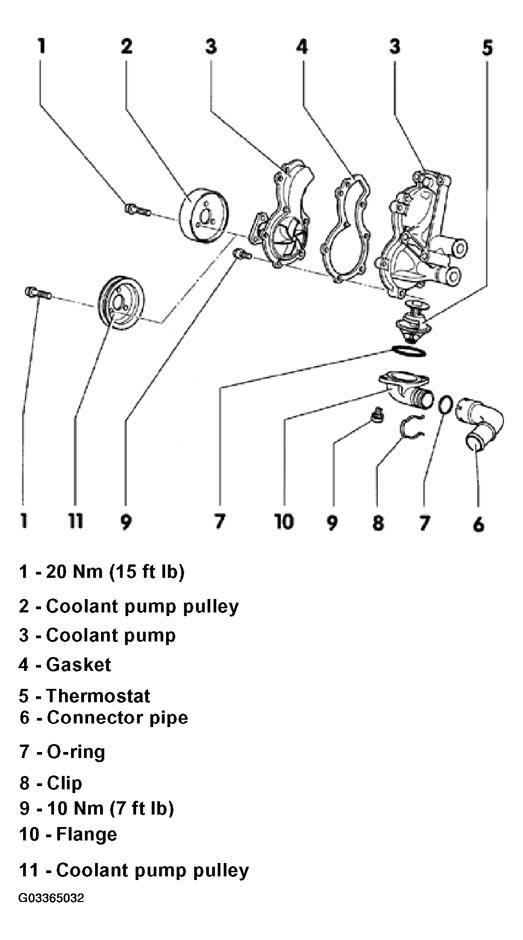

The following list pertains to Fig 1.
- 20 Nm (15 ft lb)
- Coolant pump pulley
- For ribbed belt
- Coolant pump
- Check that shaft rotates smoothly
- Gasket
- Always replace
- Thermostat
- To check, heat in water
- Starts to open at approx. 87 °C (188 °F)
- Fully open at approx. 102 °C (215 °F)
- Opening stroke: 7 mm (0.28 in.) minimum
- Connector pipe
- O-ring
- Always replace
- Clip
- 10 Nm (7 ft lb)
- Flange
- Coolant pump pulley
- For V-belt
- Remove and install using VAG1590
