Throttle Position (TP) Sensor -G69-, removing and installing

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Location: on throttle valve housing (engine). Construction can vary according to engine.

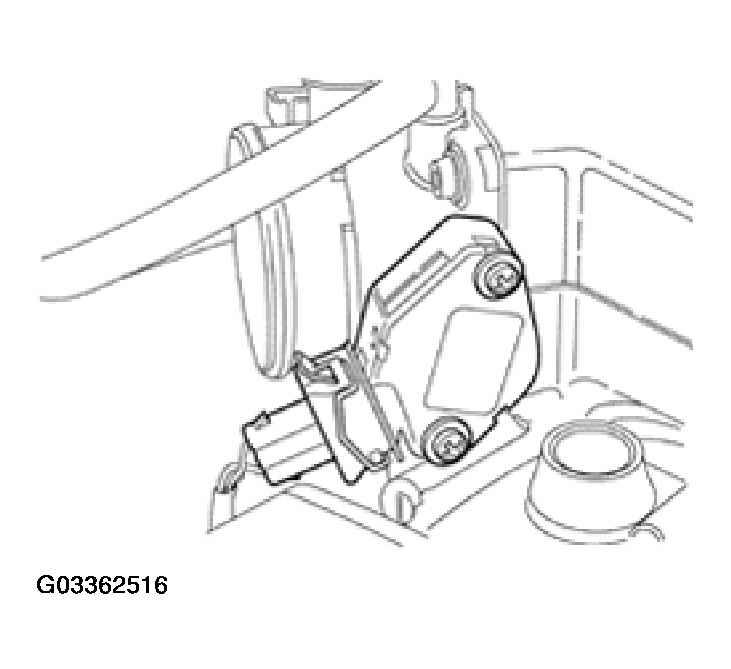

Fig 1: Identifying Throttle Position (TP) Sensor
G03362516Courtesy of VOLKSWAGEN OF AMERICA, INC.

Throttle Position (TP) Sensor -G69-, removing and installing

Gasoline engine:

See appropriate Multiport Fuel Injection (MFI) article.

Diesel engine:

See appropriate Diesel Fuel Injection article.
