Shift Lock Solenoid -N110-, location

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Location: on selector lever.

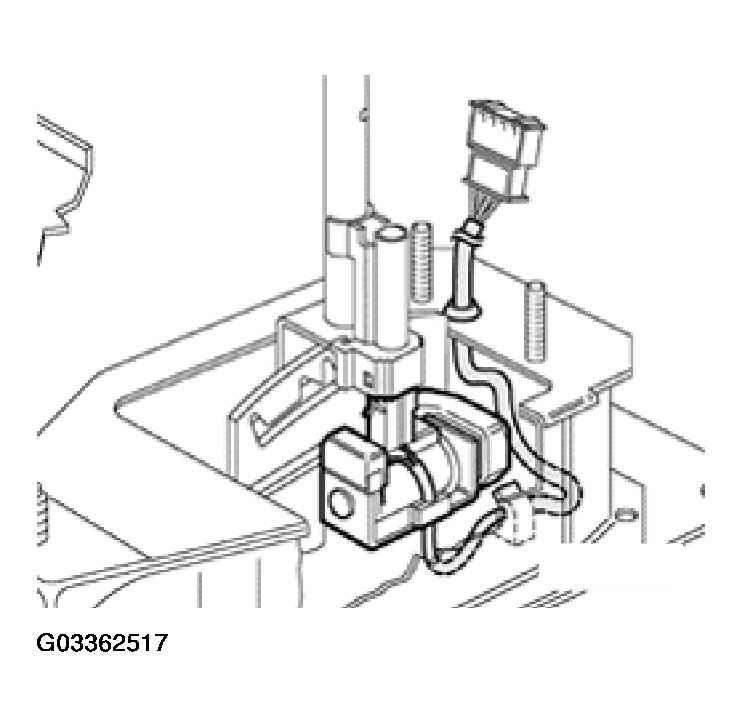

Fig 1: Identifying Shift Lock Solenoid
G03362517Courtesy of VOLKSWAGEN OF AMERICA, INC.

Shift Lock Solenoid -N110-, removing and installing

See SHIFT MECHANISM, DISASSEMBLING AND ASSEMBLING .
