Multi-function Transmission Range (TR) Switch -F125-, location

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Location: on rear of transmission.

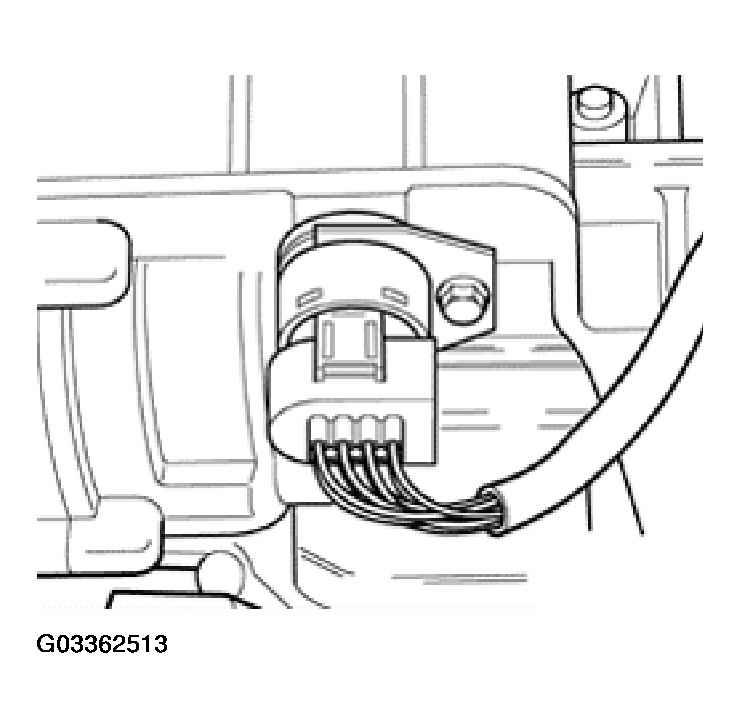

Fig 1: Identifying Multi-function Transmission Range (TR) Switch

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Multi-function Transmission Range (TR) Switch -F125-, removing and installing

Switch ignition off.
Disconnect connector from multi-function TR switch.
Remove bolt and retainer.
Remove multi-function TR switch.
Replace seal.

Install in reverse order of removal.

Tighten bolt to 10 N.m (7 ft lb).
