Engine oil specifications

WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

The following terms must appear on the oil container singly or in combination with other designations: VW 505 00, ACEA B3 or ACEA B4, API-SJ or API-SL.

Engine oils are graded according to their viscosity. The proper grade to be used in depends on existing climatic or seasonal conditions.

The original engine oil has a viscosity grade of SAE 5W-40. Use this oil over all temperature ranges for normal driving. If engine oil viscosity grade SAE 5W-40 is not available, use SAE 5W -30.

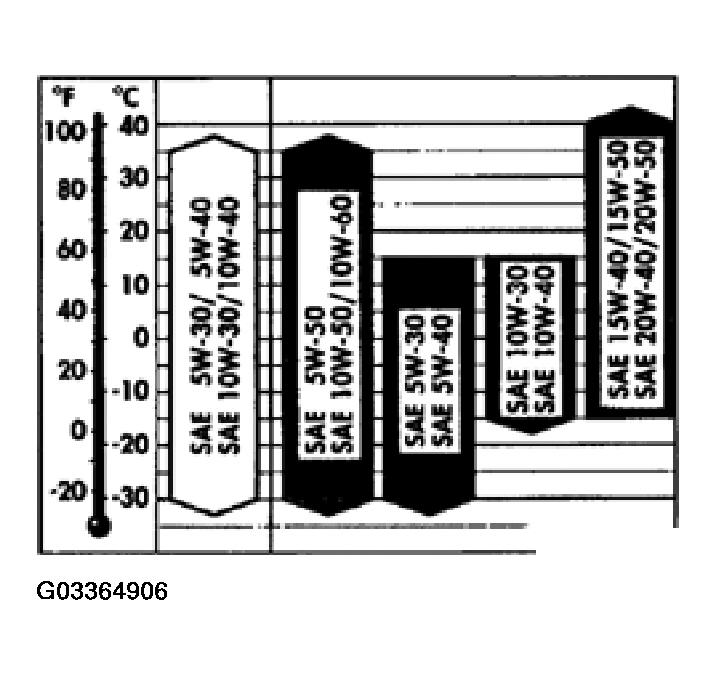

Fig 1: Engine Oil Specifications
G03364906
