Refacing exhaust valve seat

WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-a- = 31.4 mm (1.236 in.) diameter (see Fig 1)

-b- = 2.7 mm (0.106 in.)

45° = Valve seat angle

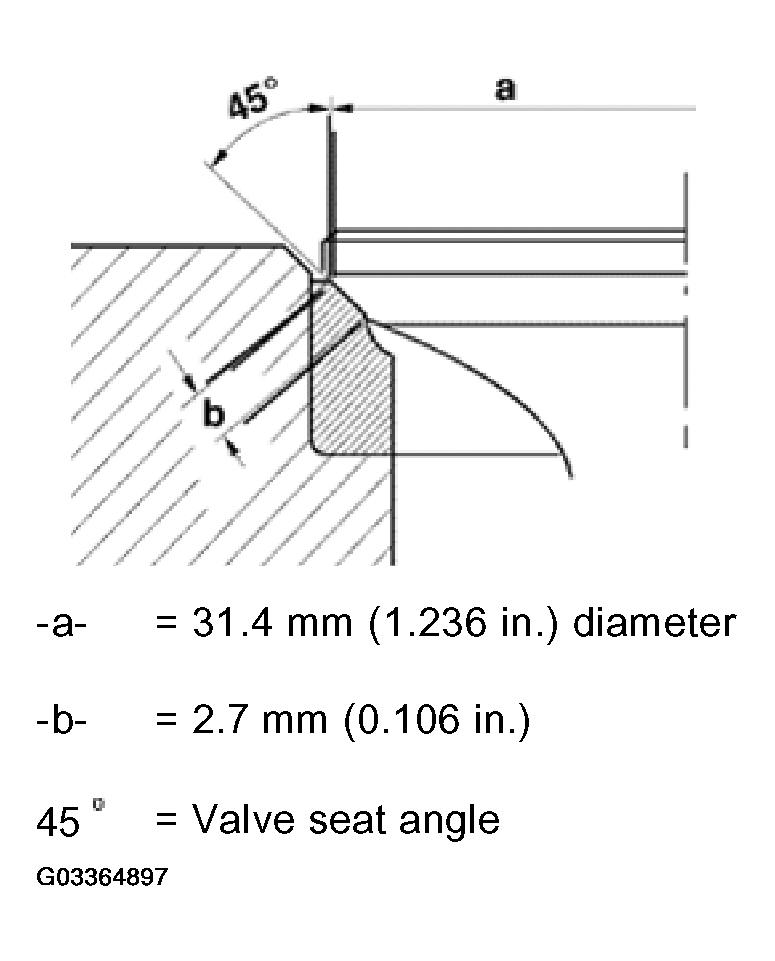

Fig 1: Identifying Exhaust Valve Seat Dimensions (Engine Codes 1Z, AHU)
G03364897
