Camshaft, removing and installing: Removing

WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper toothed belt guard and cylinder head cover.

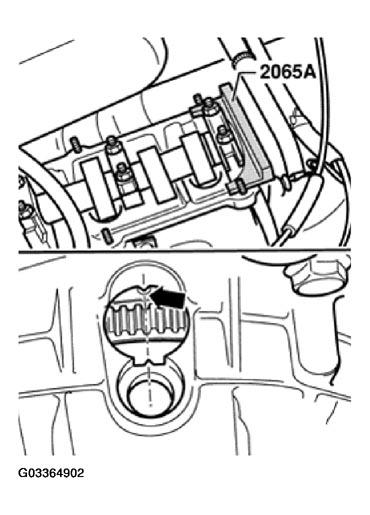

Turn crankshaft to TDC for cyl. 1 (arrow in Fig 1).

Fig 1: Turning Crankshaft To TDC For Cyl. 1
Loosen tensioner.
Remove toothed drive belt, see TOOTHED BELT, REMOVING AND INSTALLING (ENGINE CODES AAZ UP TO 10.94, 1Z, AHU) or TOOTHED BELT, REMOVING AND INSTALLING (ENGINE CODE AAZ 09.94 AND UP) .
Loosen camshaft sprocket securing bolt 1/2 turn. Release camshaft sprocket from camshaft taper by tapping with hammer (using drift through rear toothed belt guard opening).
Remove camshaft sprocket.
First remove bearing caps 5, 1 and 3. Loosen nuts for bearing caps 2 and 4 gradually and evenly, alternating in diagonal pattern.
