Flywheel and drive plate sealing flange, removing and installing: Notes
WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For repairs to the clutch, see CLUTCH
for 020 Manual Transmission, or CLUTCH
for 02A Manual Transmission.

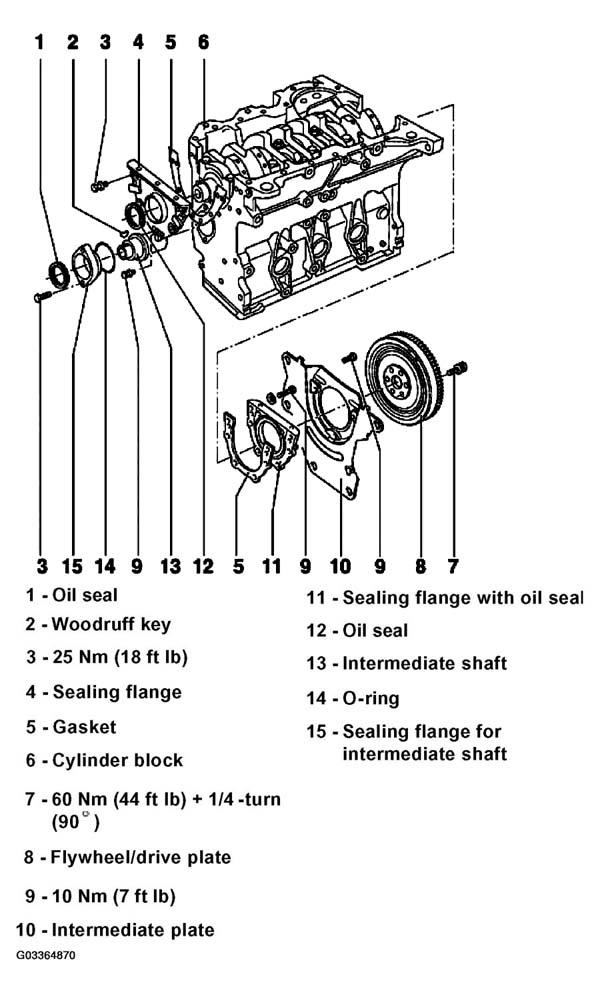

The following list pertains to Fig 1.
- Oil seal
- Remove to remove sealing flange
- Install using 10 -203 oil seal driver
- Use engine oil to lightly oil sealing lip, do not use grease
- Woodruff key
- Make sure fit is tight
- 25 Nm (18 ft lb)
- Sealing flange
- Gasket
- Always replace
- Cylinder block
- Crankshaft, removing and installing, see CRANKSHAFT, REMOVING AND INSTALLING
- Pistons and connecting rods, dismantling and assembling, see PISTONS AND CONNECTING RODS, DISASSEMBLING AND ASSEMBLING
- 60 Nm (44 ft lb) + 1/4 -turn (90 °)
- Always replace
- Flywheel/drive plate
- To remove and install flywheel, counter-hold using 3067 flywheel retainer
- Drive plate, removing and installing DRIVE PLATE, REMOVING AND INSTALLING
- 10 Nm (7 ft lb)
- Intermediate plate
- Must be located on dowels
- Do not damage/bend when assembling
- Sealing flange with oil seal
- Only replace complete
- Use engine oil to lightly oil sealing lip, do not use grease
- Oil seal
- Intermediate shaft
- O-ring
- Replace if damaged
- Sealing flange for intermediate shaft
