Ribbed belt, removing and installing: Removing

WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Loosen generator mounting bolts -1- and -2- at least one turn.
Press down on generator using 3297 lever and remove ribbed belt from generator pulley.
Remove power steering pump V-belt.
See V-BELT TENSION, ADJUSTING .
Remove ribbed belt.

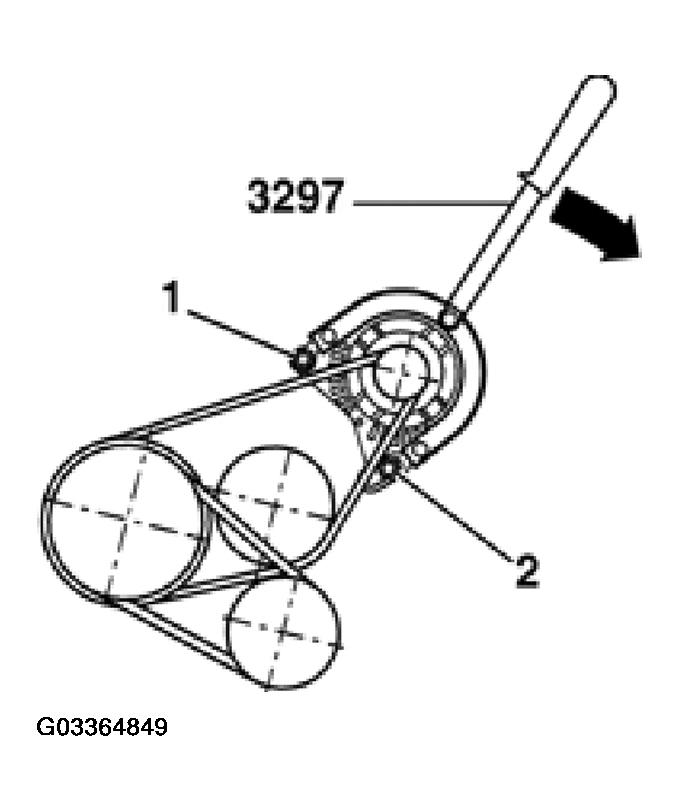

Fig 1: Removing/Installing Ribbed Belt (Belt Drive Without Tensioner)
