Checking Crankshaft Dowel Pin Projection

WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Dowel pin projection -3- from crankshaft:

Dimension -a- 2.5-3.0 mm (0.098-0.118 in.)

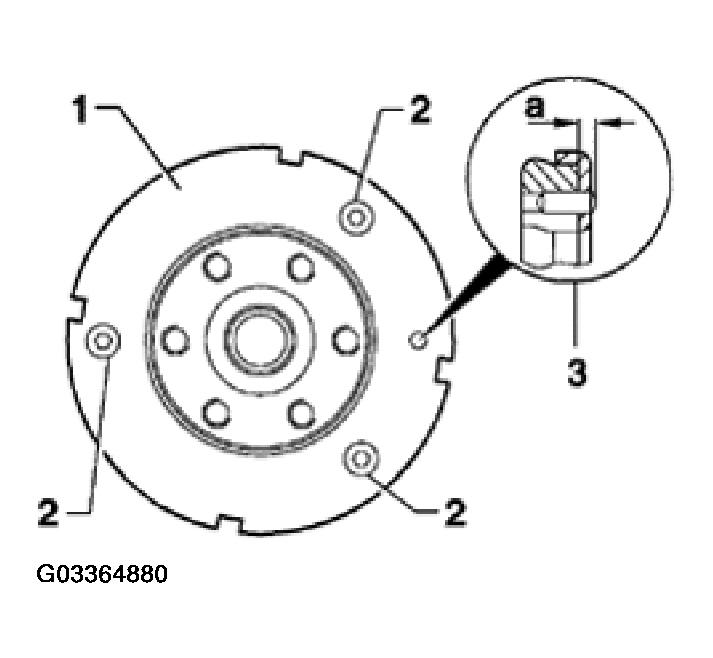

Fig 1: Checking Crankshaft Dowel Pin Projection
G03364880
