Vehicles with automatic transmission
WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

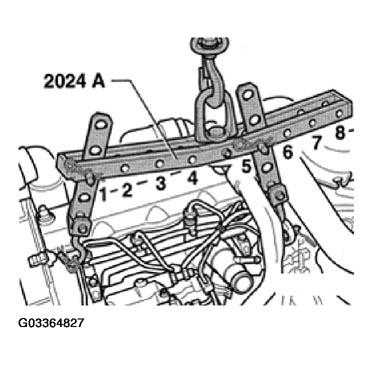

- Attach engine sling 2024A as follows and lift slightly using workshop crane (remove slack).
- Pulley end: 2nd hole in hook at position 1
- Flywheel end: 2nd hole in hook at position 5
CAUTION:
Secure all 2024A engine sling hooks and locating pins using lock pins.
NOTE:
- The end of the cross bar marked with installation positions 1-4 points toward drive belt.
- Holes in the hooks are counted from the hook end.
