Engine codes 1Z, AHU

WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

(Bolts lubricated)

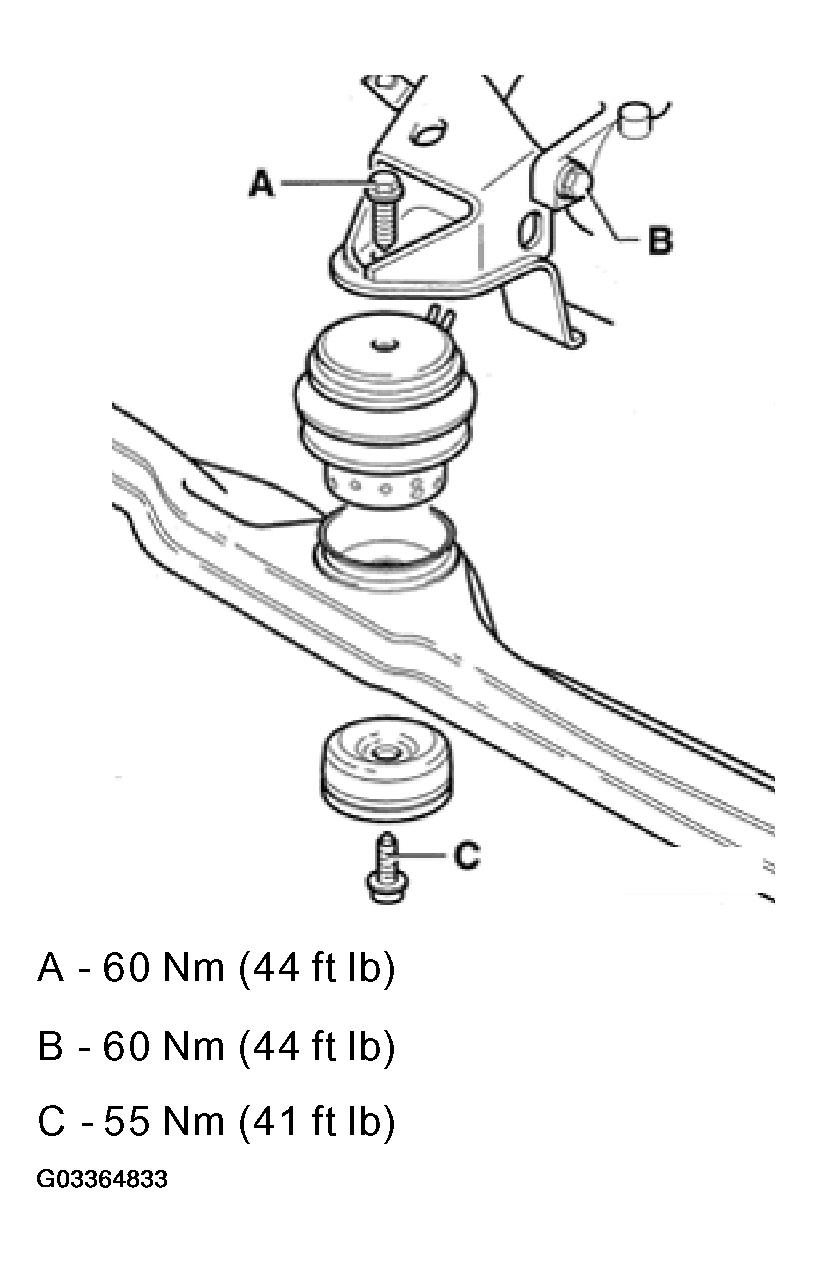

Front engine mount

- 60 Nm (44 ft lb)
- 60 Nm (44 ft lb)
- 55 Nm (41 ft lb)

Fig 1: Identifying Front Engine Mount (Engine Codes 1Z, AHU)

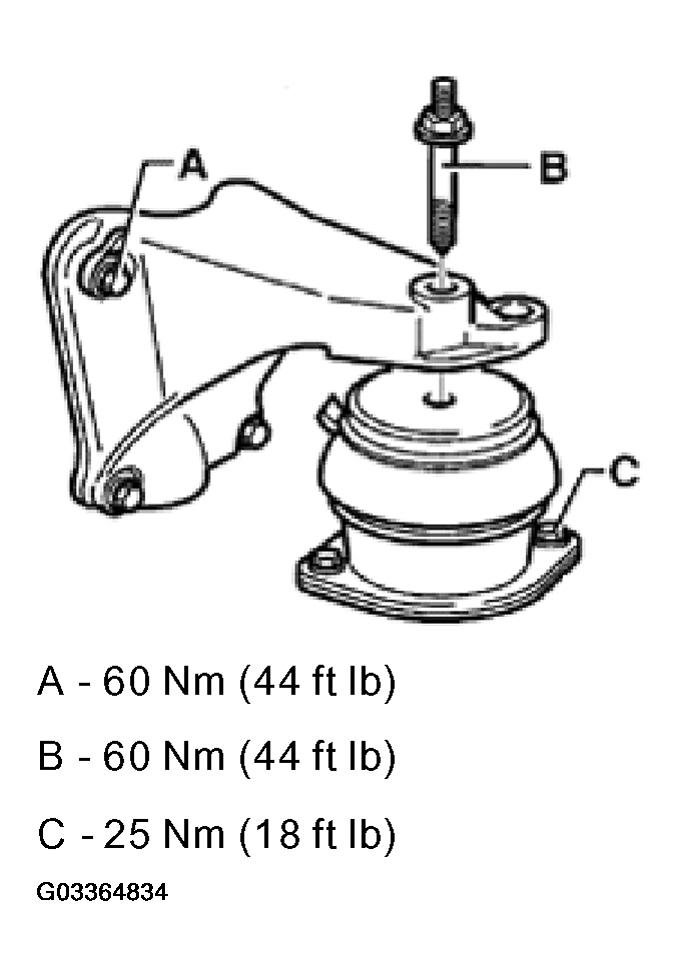

Right rear engine mount

- 60 Nm (44 ft lb)
- 60 Nm (44 ft lb)
- 25 Nm (18 ft lb)

Fig 2: Identifying Right Rear Engine Mount (Engine Codes 1Z, AHU)

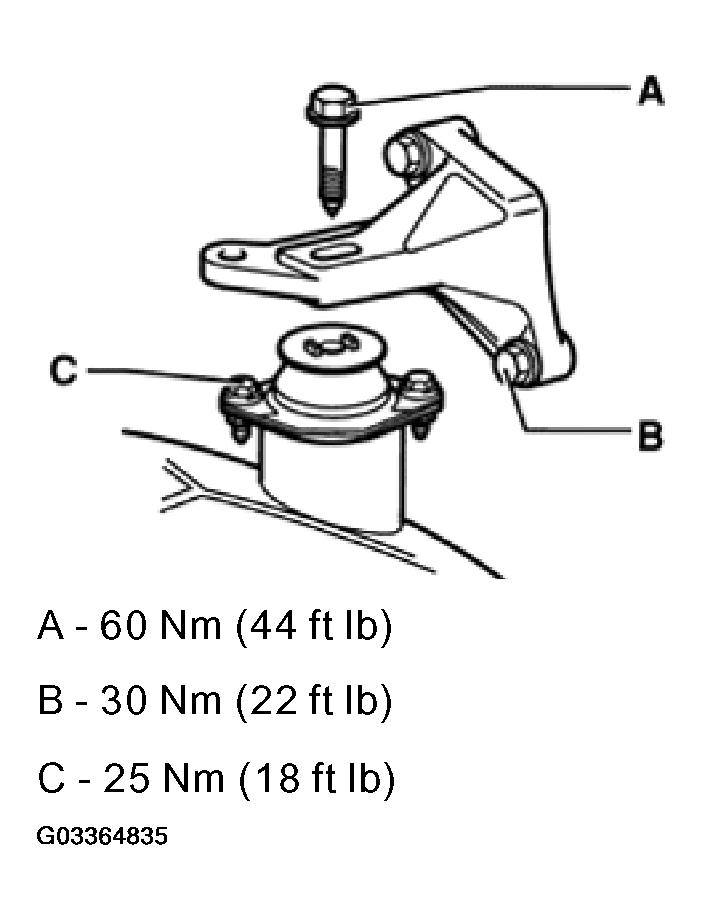

Left rear engine mount -Manual transmission

- 60 Nm (44 ft lb)
- 30 Nm (22 ft lb)
- 25 Nm (18 ft lb)

Fig 3: Identifying Left Rear Engine Mount -Manual Transmission

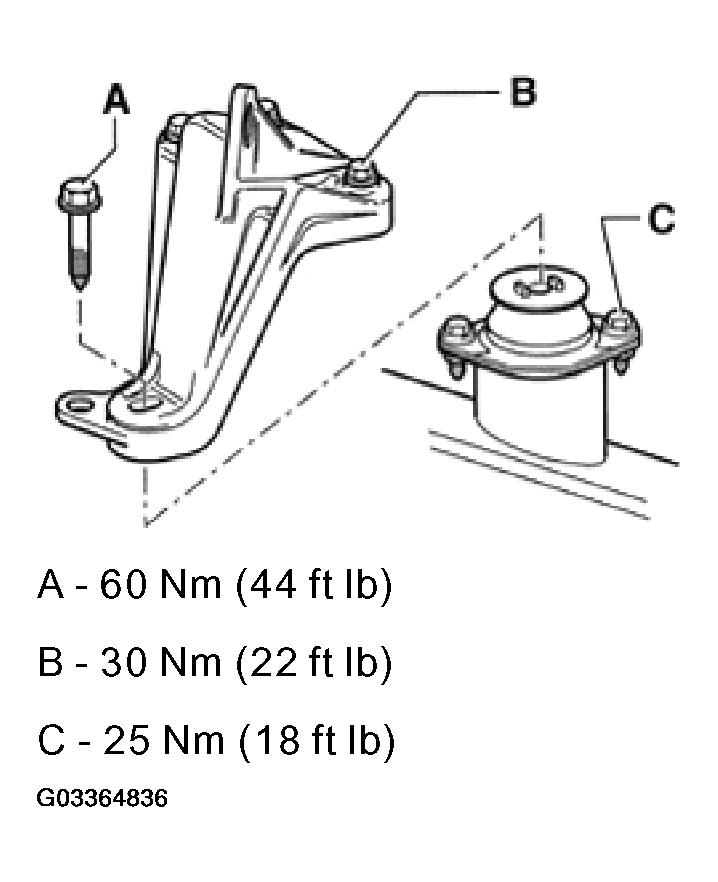

Left rear engine mount -Automatic transmission

- 60 Nm (44 ft lb)
- 30 Nm (22 ft lb)
- 25 Nm (18 ft lb)

Fig 4: Identifying Left Rear Engine Mount - Automatic Transmission (Engine Codes 1Z, AHU)
