Engine code AAZ

WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

(Bolts lubricated)

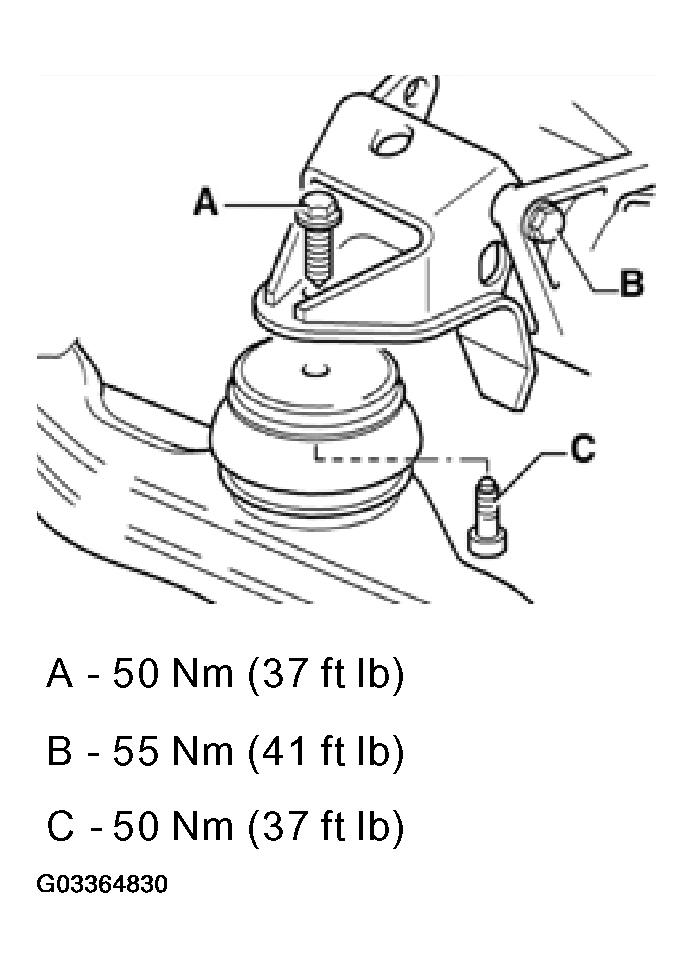

Front engine/transmission mount

- 50 Nm (37 ft lb)
- 55 Nm (41 ft lb)
- 50 Nm (37 ft lb)

Fig 1: Identifying Front Engine/Transmission Mount (Engine Code AAZ)

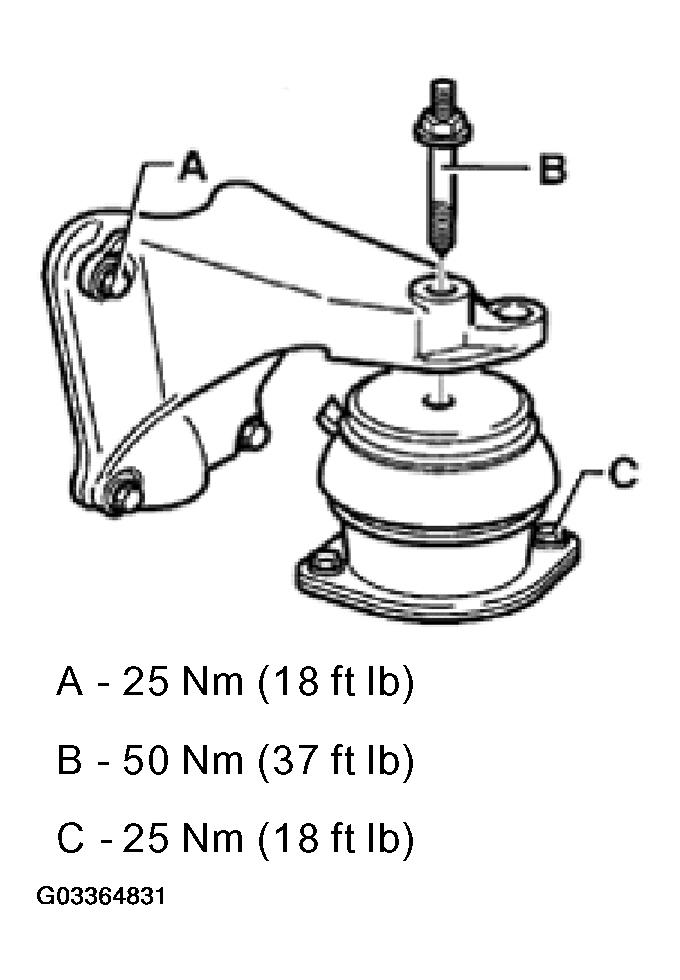

Right rear engine mount

- 25 Nm (18 ft lb)
- 50 Nm (37 ft lb)
- 25 Nm (18 ft lb)

Fig 2: Identifying Right Rear Engine Mount (Engine Code AAZ)

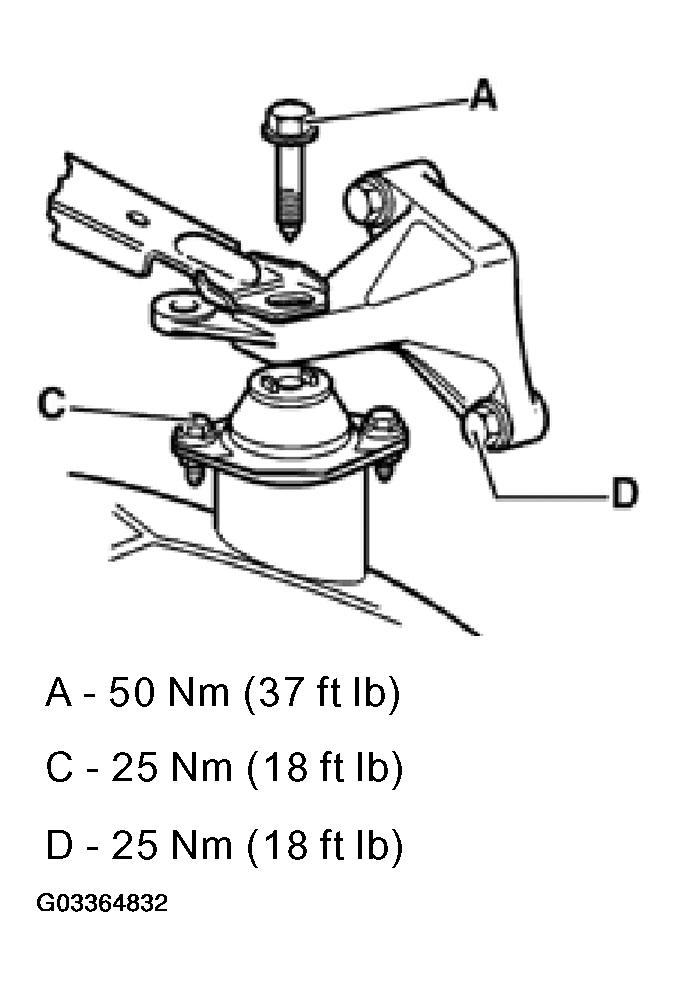

Left rear engine/transmission mount

- 50 Nm (37 ft lb)
- 25 Nm (18 ft lb)
- 25 Nm (18 ft lb)

Fig 3: Identifying Left Rear Engine/Transmission Mount (Engine Code AAZ)
