- Disconnect shift linkage from transmission.
- Disconnect drive axles from transmission drive flanges.
- Disconnect exhaust from turbocharger.

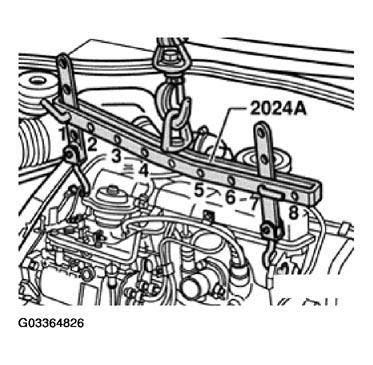

- Attach engine sling 2024A as follows and lift slightly using workshop crane (remove slack).
- Pulley end: 2nd hole in hook at position 1
- Flywheel end: 2nd hole in hook at position 7
CAUTION:
Secure all 2024A engine sling hooks and locating pins using lock pins.
NOTE:
- The end of the cross bar marked with installation positions 1-4 points toward drive belt.
- Holes in the hooks are counted from the hook end.
- Remove front engine mount as an assembly.
- Lift engine/transmission assembly out toward front.
CAUTION:
When lifting engine/transmission assembly, carefully guide the assembly out to avoid damage to body.
NOTE:
When working on the engine, secure the block to an engine stand using the VW540 holding fixture.
