Wiper blades, adjusting parked position

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Parked position:

Windshield:

Adjust wiper blades to the markings in the windshield.
1. a - Marking for vehicles with LHD
2. b - not applicable
  Tightening torque of wiper arms: 20 N.m (15 ft lb).

  Rear window:

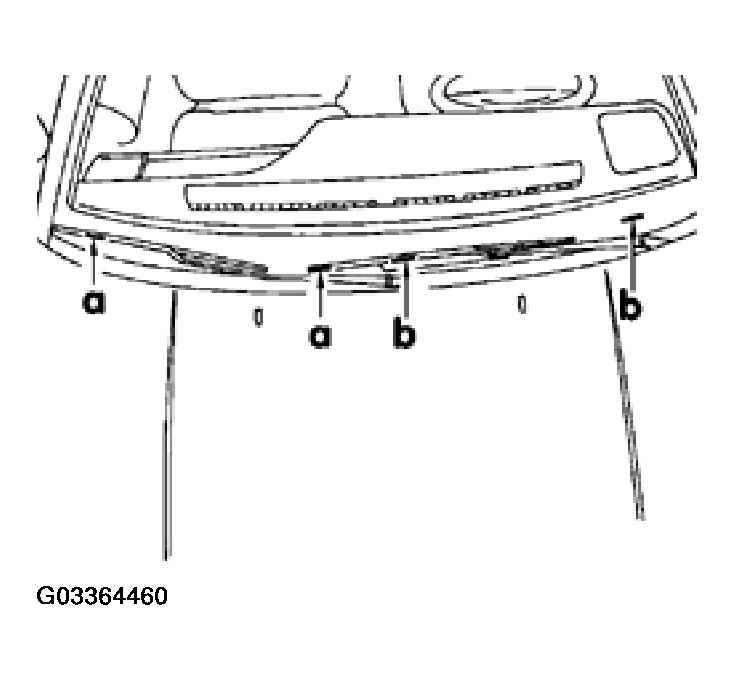

Fig 1: Adjusting Wiper Blades To The Markings In The Windshield

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Adjust wiper blade to clearance -a-.
Dimension -a- = 25 mm (0.98 in.)

Tightening torque of wiper arms: 15 N.m (11 ft lb).

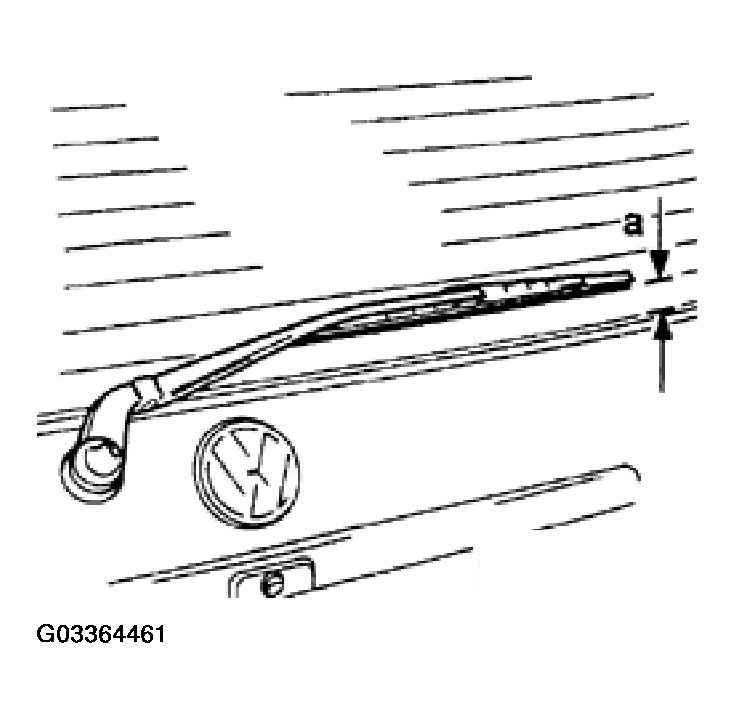

Fig 2: Adjusting Wiper Blade To Clearance

Courtesy of VOLKSWAGEN OF AMERICA, INC.
