Adjusting wiper arm

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Use 24 mm open end wrench -1- on wiper arm adjusting tool 3358 and twist wiper arm -2- in direction of arrows until setting matches specification in table, refer to WIPER BLADE CONTACT ANGLE, CHECKING AND ADJUSTING .
Loosen retaining screw -3- and remove wiper arm adjusting tool 3358 from wiper arm -2- then reinstall and recheck.

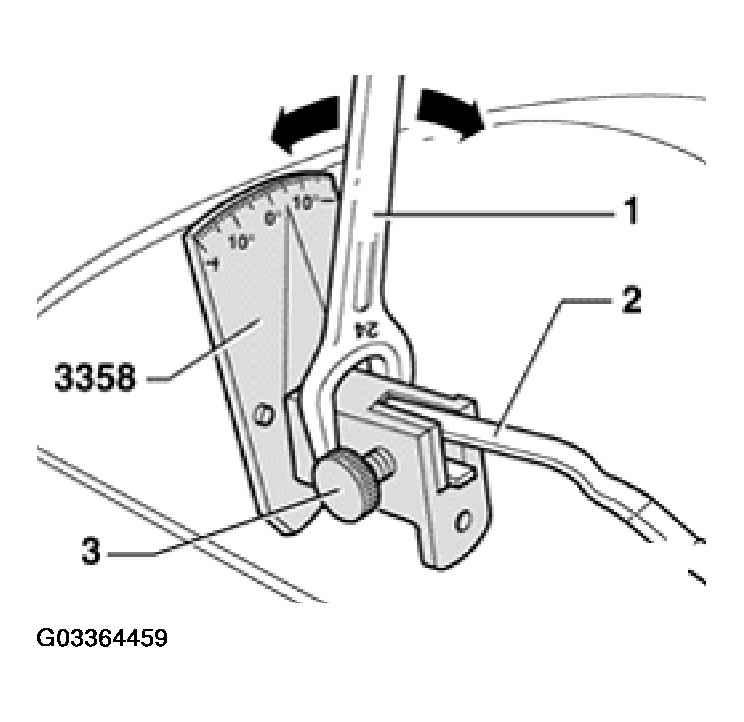

Fig 1: Adjusting Wiper Arm

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Compare angle indicated with specification in table.
If necessary, repeat setting and checking procedure until specification in table is met.
Remove adjusting tool and re-install wiper blade.
