Checking/adjusting V -belt tension:: Adjusting:
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

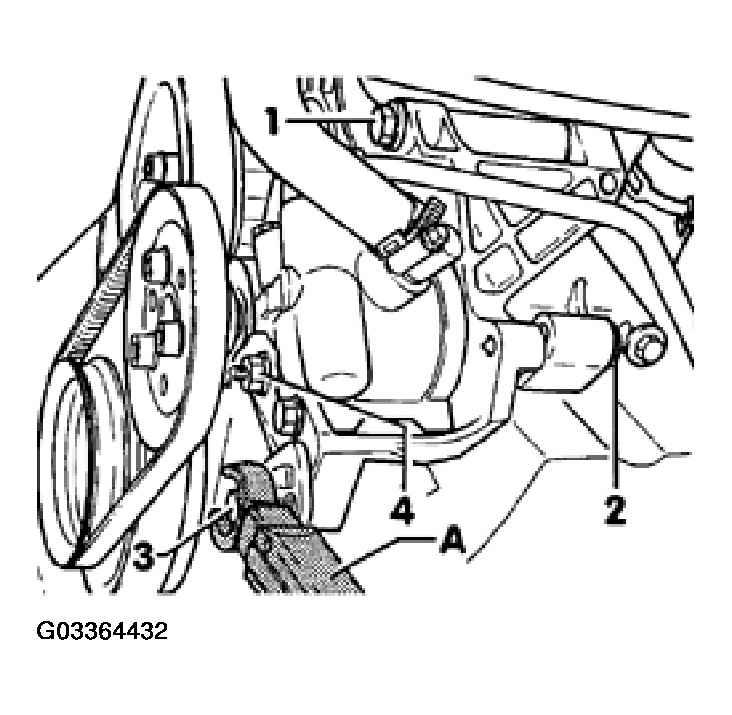

When loosening securing bolts -1- and -2- and clamping bolt -3-, loosen tensioning bar securing nut -4- (if equipped) at least one turn.
NOTE:
The VAG 1410 torque wrench and ring insertion tool (size 22) can be used for V -belt adjustment.
- VAG 1410/2 (see -A-).
- Tension V-belt by tightening the tensioning nut to 4 N.m (35 in lb) (used belts) and tensioning nut clamping bolt -3- to 25 N.m (18 ft lb).
- Tighten securing bolt -1- to 45 N.m (33 ft lb).
- Tighten securing bolt -2- and tensioning bar securing nut -4- (if equipped) to 25 N.m (18 ft lb).
