Transportation wiper blades, removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Transportation blades can easily be removed as follows:

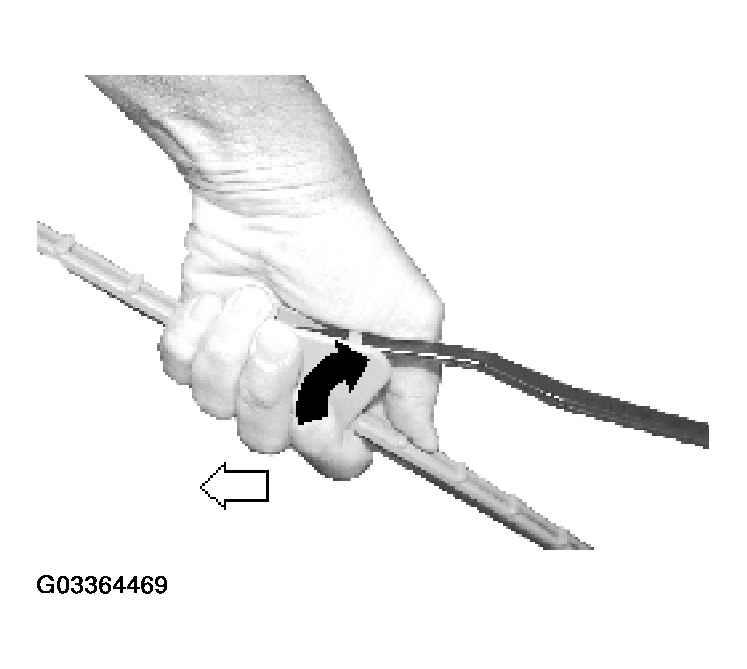

Grasp blade as shown and rotate in direction of arrow (toward windshield).

Fig 1: Grasping Transportation Wiper Blade
Courtesy of VOLKSWAGEN OF AMERICA, INC.

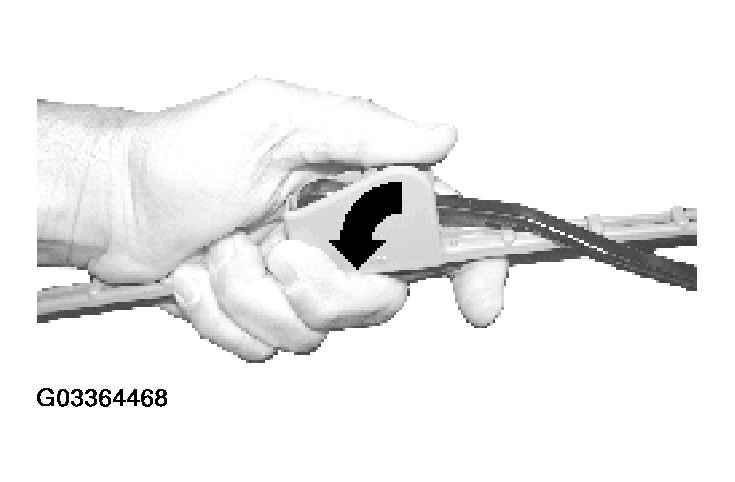

Rotate blade in opposite direction (black arrow) then, carefully slide blade off wiper arm.

Fig 2: Rotating Transportation Wiper Blade In Opposite Direction
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: Wiper arm/blade alignment has been preset at the factory, then checked and adjusted (if necessary) during the PDI. DO NOT twist or bend the wiper arm. If wiper arm/blade alignment is incorrect, chattering and/or streaking will occur.

If arm has been bent, see WIPER BLADE CONTACT ANGLE, CHECKING AND ADJUSTING .

Install original equipment wiper blades (located in trunk) at the time of retail vehicle delivery.
NOTE:

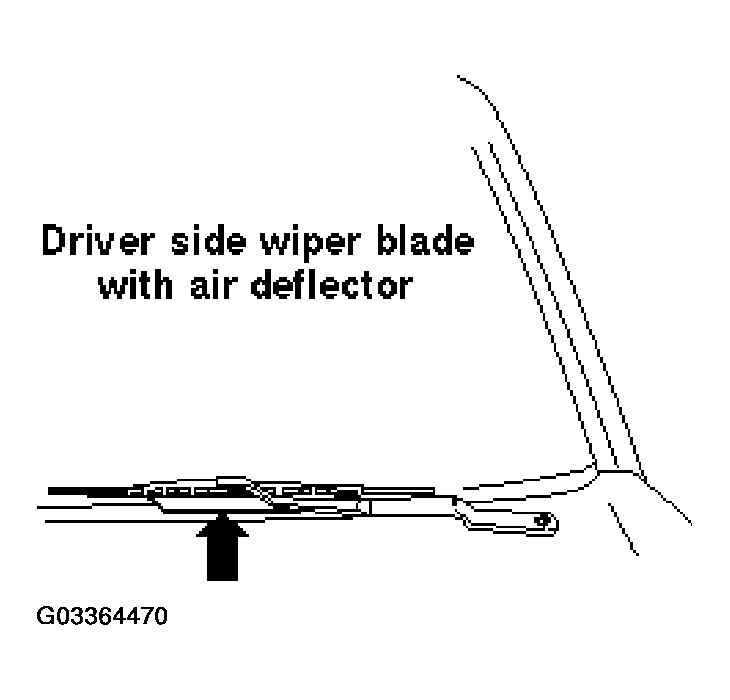

- Wiper blade with air deflector (arrow) must be installed on driver's side with deflector on bottom of wiper blade.

  Fig 3: Identifying Wiper Blade With Air Deflector
  Courtesy of VOLKSWAGEN OF AMERICA, INC.

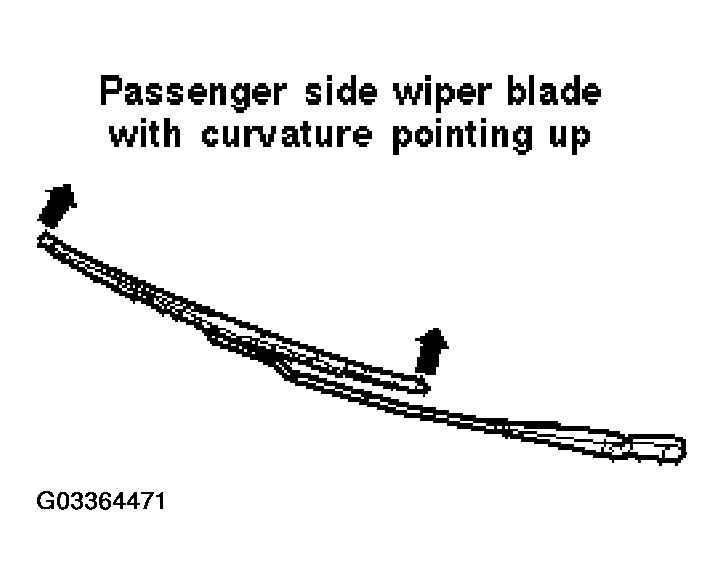

- Passenger's side wiper blade may be curved, install with curved ends of blade pointing up.

  Fig 4: Identifying Proper Passenger Side Wiper Blade Installation
  Courtesy of VOLKSWAGEN OF AMERICA, INC.
