Service Reminder Indicator (SRI) display, resetting
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
After performing the specified maintenance, reset the Service Reminder Indicator (SRI) (F27) displays according to SERVICE REMINDER INDICATOR (SRI) SPECIFICATION .
SERVICE REMINDER INDICATOR (SRI) SPECIFICATION
| Maintenance performed | SRI displays to reset |
|---|---|
| 7,500 mile (12,000 km)/6 month engine oil change |
OEL |
| 15,000 mile (24,000 km)/12 month maintenance |
OEL, IN 01 |
| 22,500 mile (36,000 km)/18 month engine oil change |
OEL |
| 30,000 mile (48,000 km)/24 month maintenance |
OEL, IN 01 and IN 02 |
| 37,500 mile (60,000 km)/30 month engine oil change |
OEL |
| 45,000 mile (72,000 km)/36 month maintenance |
OEL, IN 01 |
| 52,500 mile (84,000 km)/42 month engine oil change |
OEL |
To reset the SRI displays:
- Switch ignition ON.
- Press and hold the odometer reset button -arrow- located below speedometer.
- Switch ignition OFF and release odometer reset button.
OEL will now appear in SRI display.

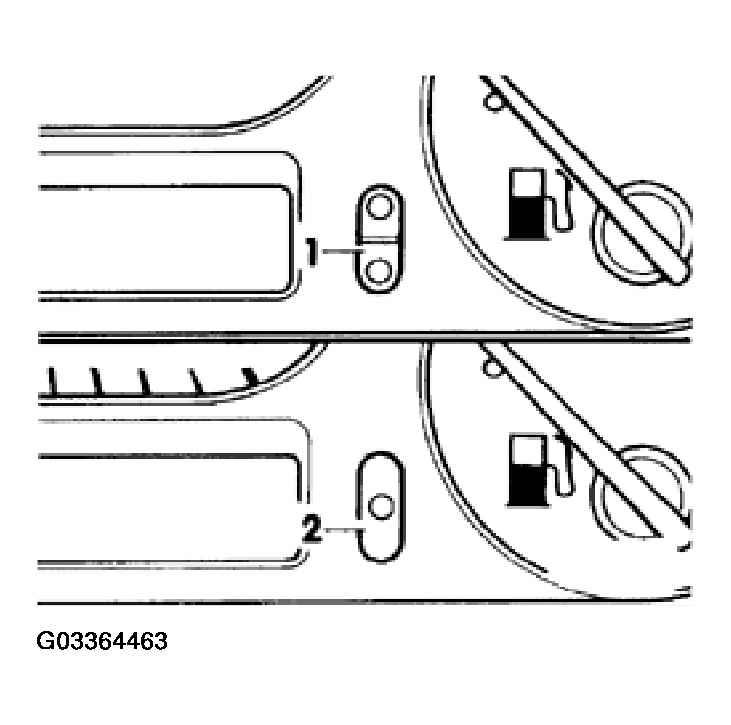

- Press and hold the lower digital clock reset button -1- or the analog lock reset button -2- until five dashes (- - - - -) appear in display.
OEL SRI is now reset for 7500 miles (12,000 km) or 6 months, whichever comes first
Once OEL is reset, the other displays can be reset in the same manner without switching the ignition on and off again.
- Press odometer reset button to proceed to the IN 01 display (15,000 mile maintenance) and reset using the clock reset button.
If necessary, repeat procedure to reset IN 02 (30,000 mile maintenance) display.
To escape reset mode:
- Switch ignition ON; when display IN 01 appears, switch ignition OFF.
