Checking/adjusting V -belt tension, belt drive without tensioning pulley:
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with 1.8 liter, without A/C
NOTE:
It is not necessary to check and adjust the poly - ribbed belt tension on engines with tensioning pulley. Optimal belt tension is assured by means of the integral spring-loaded tensioning device.
- Loosen Generator (GEN) securing bolts.

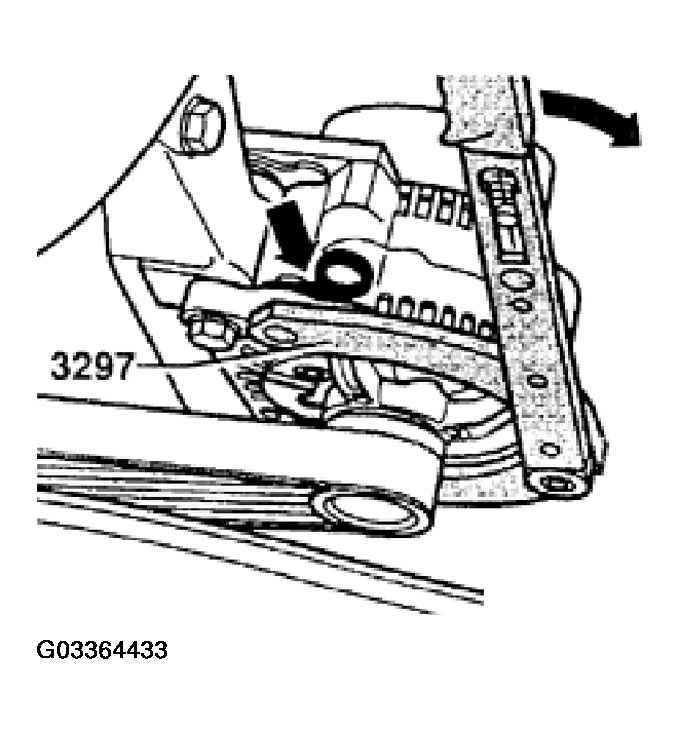

- Insert tensioning lever 3297 and secure with locking pin.
- Swing Generator (GEN) down (use e.g. torque wrench as drive for 3297). Push Generator (GEN) as far as stop at least three times to ensure optimal ease of operation.
- With the Generator (GEN) loosened, let engine at idle for at least 10 seconds.
- Tighten Generator (GEN) to 25 N.m (18 ft lb).
