5-speed transmission 02A

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with 2.8 liter VR6 engine

Remove oil filler plug -arrow-.

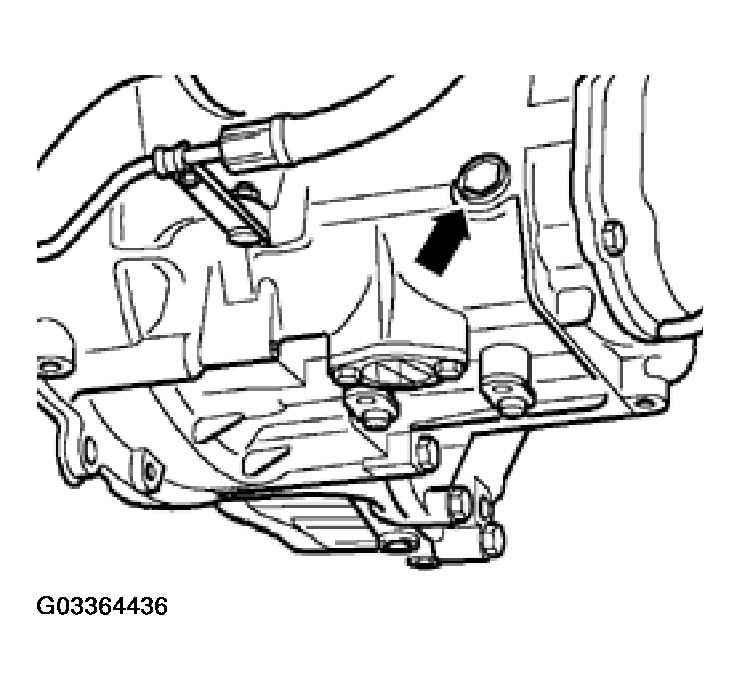

Fig 1: Identifying Oil Filler Plug (Vehicles With 2.8 Liter VR6 Engine)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Check oil level; oil should be up to the lower edge of the filler hole.
If necessary, top off by adding G50 synthetic oil, SAE 75W90
Re-install oil filler plug.
