Main headlights

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Low beam setting:

New test screen (without 15 setting line)

Adjust headlights so that the light/dark border touches setting line -1- on the screen. Breakpoint -2-, between the left (horizontal) area and the right (rising) area of the light/dark border must align with central mark -3-. The bright spot of the light beam will fall to the right of central mark -3-.

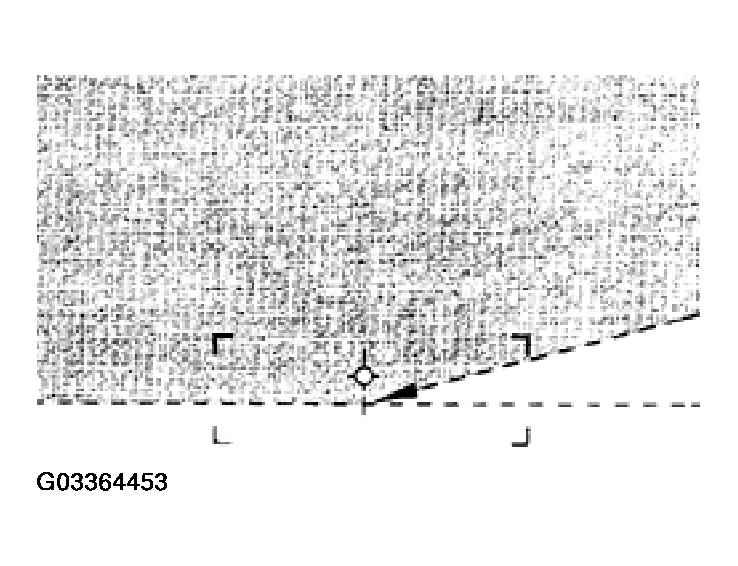

Fig 1: Checking Headlight Adjustment

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: To make it easier to find the break point, cover and uncover the left half of the headlight alternately (in direction of travel). Then check low beam again.

High beam setting:

After correctly adjusting low beam, the center of the high beam must be on the central mark -3-, refer to CHECKING HEADLIGHT ADJUSTMENT .

Older test screen (with 15 °setting line)

Fig 2: Setting High Beam
Courtesy of VOLKSWAGEN OF AMERICA, INC.
When using this screen to adjust low beam, ignore 15 °setting line.
