Final drive oil level, checking

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove speedometer drive and wipe off with a non-fluffy cloth.
Install speedometer drive and remove; measure oil level.
- Oil level must be between the min and max marking.

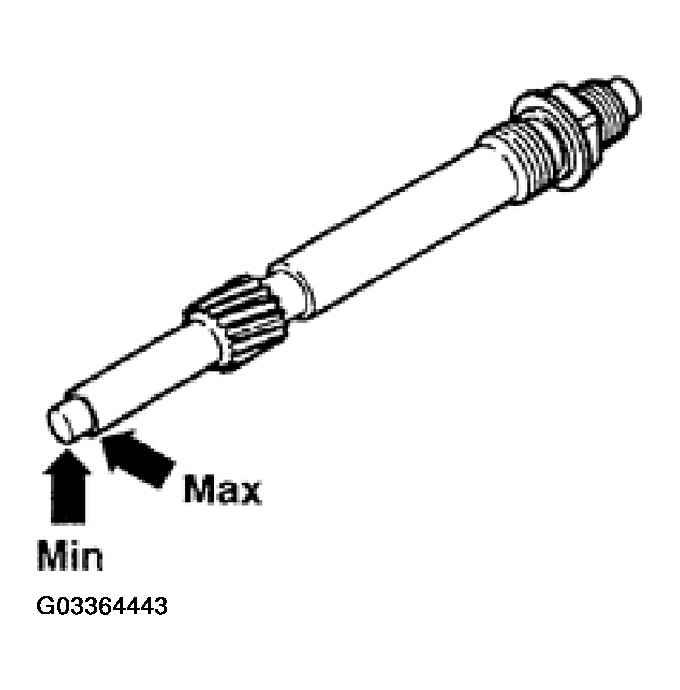

Fig 1: Checking Final Drive Oil Level

Courtesy of VOLKSWAGEN OF AMERICA, INC.

If necessary, add gear oil (specification G50, SAE 75W90).
NOTE:
- The quantity of oil between the min and max markings is 0.1 liter.
- Excess oil poured in can be extracted with VAG 1358 A.
Install speedometer drive.
