VAG 1551 Scan Tool (ST), connecting (starting 1994 m.y.)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove front ashtray.
Slide small cover to the left -arrow-.
With ignition switched OFF, connect VAG 1551/3 adapter harness between Data Link Connector (DLC) and VAG 1551 Scan Tool (ST).

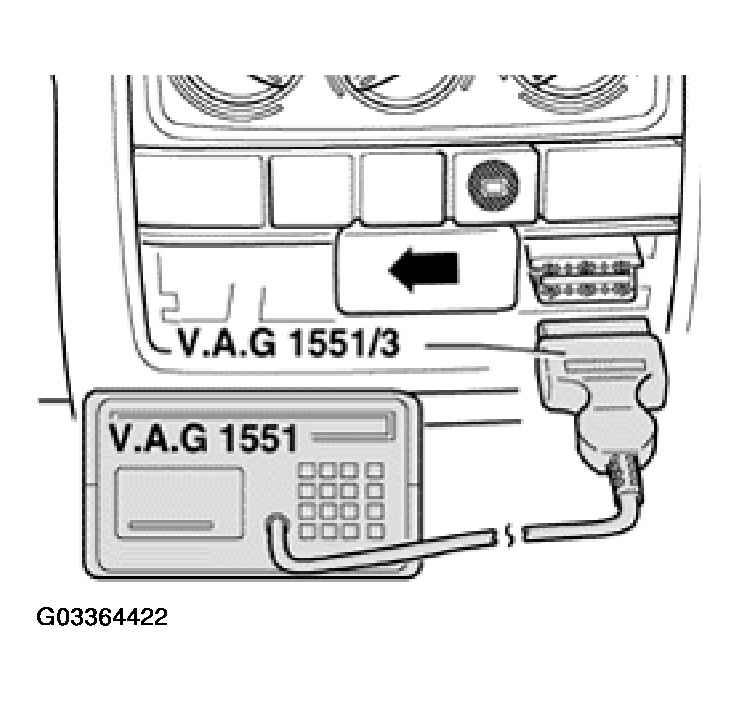

Fig 1: Connecting VAG 1551/3 Adapter Harness Between Data Link Connector (DLC) And VAG 1551 Scan Tool (ST) (Starting 1994 m.y.)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Indicated on display.

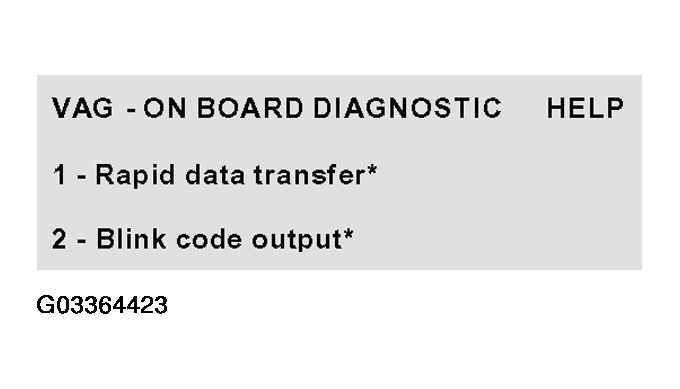

Fig 2: VAG 1551 Scan Tool (ST) Display - On Board Diagnostic (Starting 1994 m.y.)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

* Operating modes 1 and 2 are displayed alternately.
