Adjusting tension:
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Remove upper belt cover.

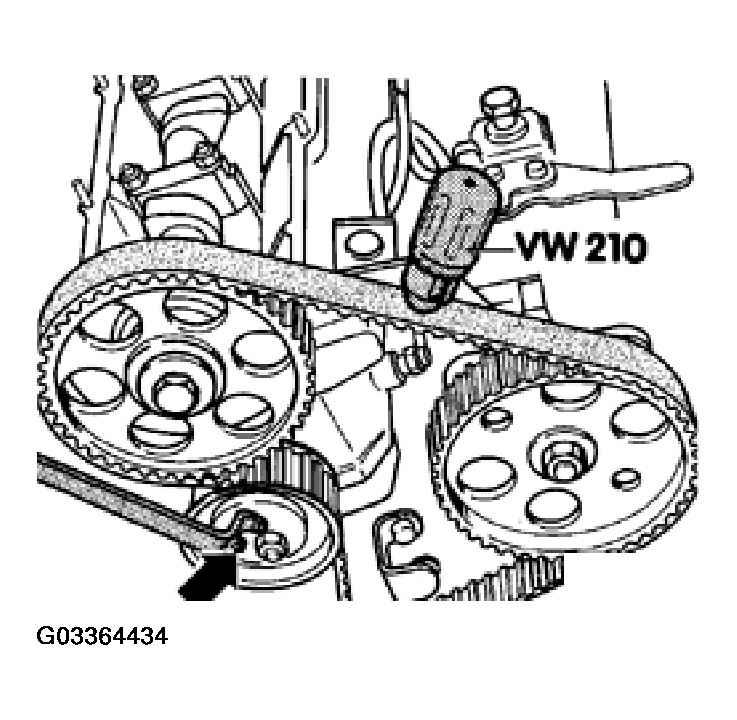

- Use tester VW 210 to measure toothed belt tension between camshaft sprocket and injection pump gear.
Specification: Scale reading = 12 - 13
If the actual value is not to specification, tension the toothed belt as follows:
- Loosen tensioning pulley securing nut.
- Turn tensioning pulley to the right with nut turner, (e.g. Matra V 159 or similar) -arrow- until the correct specification is achieved.
- Tighten tensioning pulley securing nut to 45 N.m (33 ft lb).
- Install upper belt cover.
