Air deflector strap, removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with VR6 engine

Air deflectors for cooling the front brakes are installed on models with VR6 engines. As the front spoiler is not installed during transit, the air deflectors are attached with a strap to the bumper -D- to avoid damage.

Before installing the front spoiler:

Remove air deflector -A- and cut off the strap -B- where indicated by dashed line -C-.

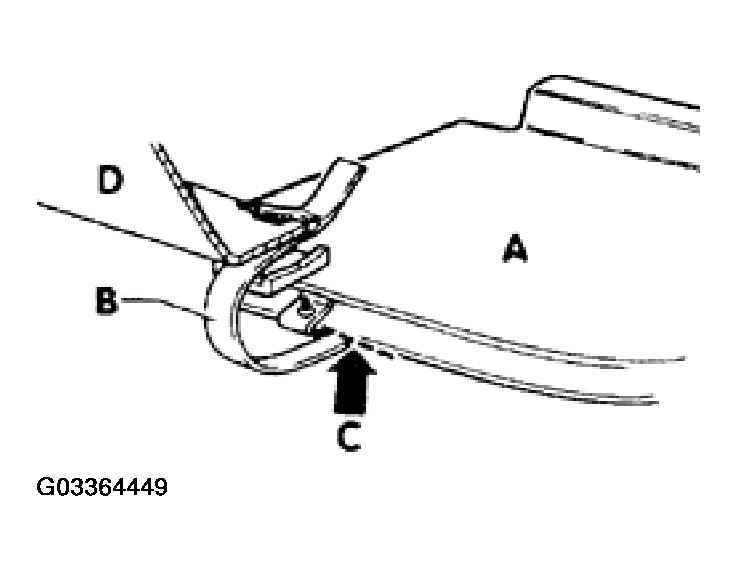

Fig 1: Removing Air Deflector (Vehicles With VR6 Engine)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Attach air deflector to the front spoiler with self-tapping combination screws.
NOTE: Combination screws are shipped with the air deflector.
