Starter lock-out switch (manual transmission)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
From 05.96 And Up
Manual transmission vehicles have a starter lock -out function utilizing a clutch pedal-operated switch and a relay on the main fuse/relay panel.
NOTE:

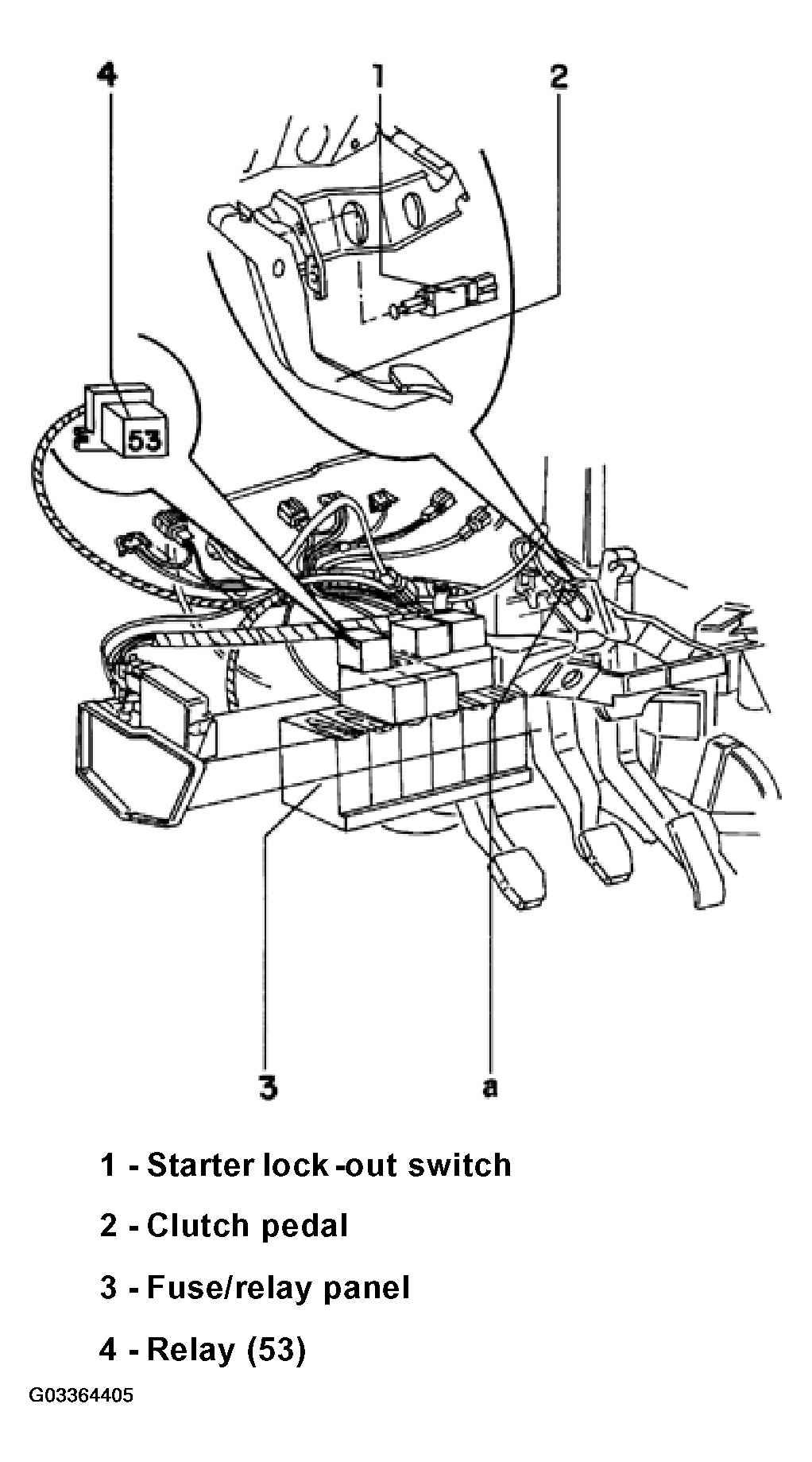

The following list refers to items in Fig 1.
- - Starter lock-out switch
Removing:
- Disconnect 2-pin harness connector -a-.
- Press and turn switch and pull out of bracket away from clutch pedal - 2 -.
- - Clutch pedal
- - Fuse/relay panel
- - Relay (53)
- Relay position 21
