Interior lights overview: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

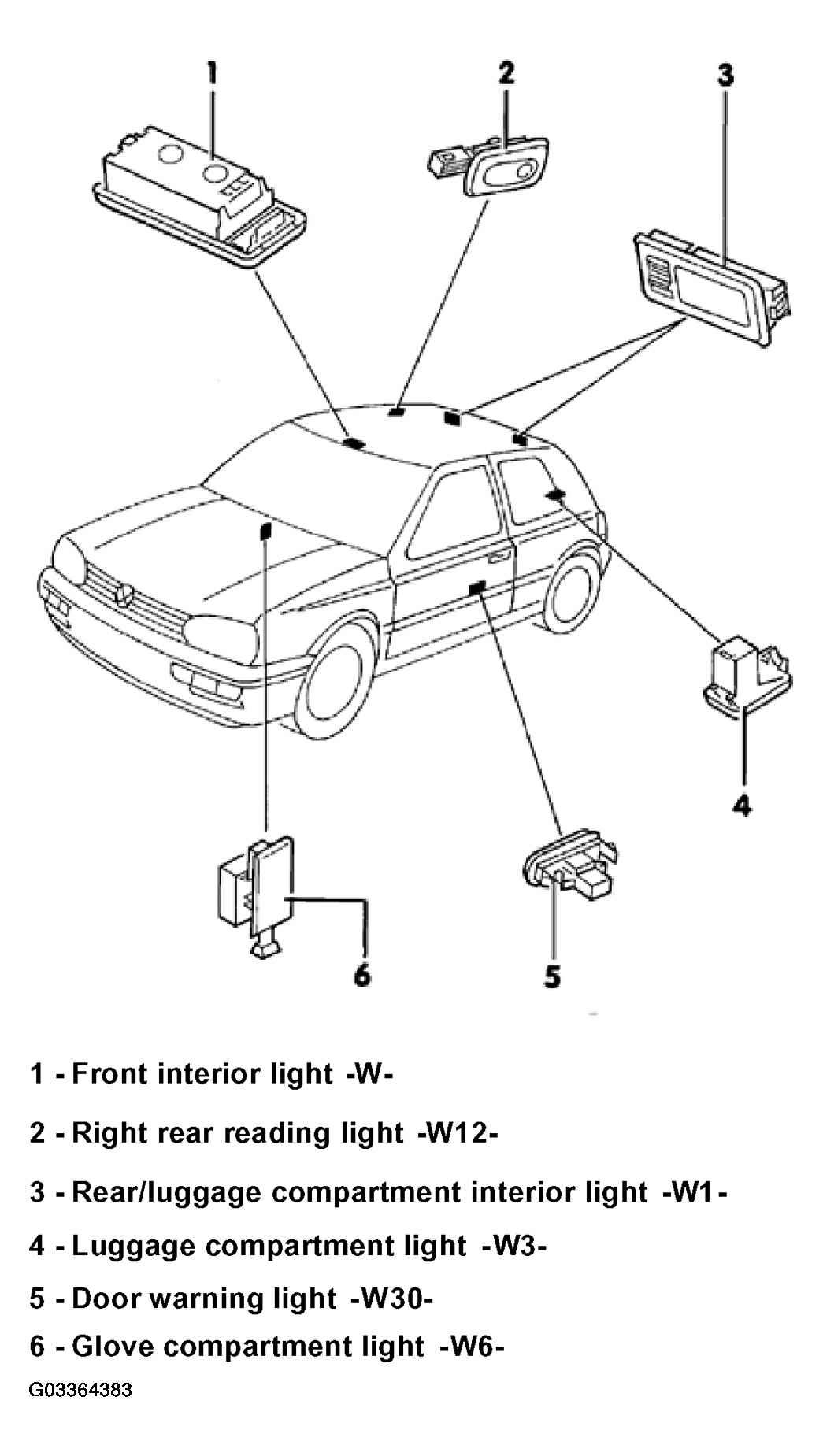

The following list refers to items in Fig 1.
- - Front interior light -W-
- Includes right front map/reading light -W13- and sunroof switch -E8-
- Removing/installing, refer to Front interior light -W-, removing and installing
- Checking and replacing light bulb Interior light bulb, checking and replacing
- - Right rear reading light -W12-
- Jetta only
- Left rear reading light -W11- also installed
- - Rear/luggage compartment interior light -W1-
- Not applicable to USA/Canada
- - Luggage compartment light -W3-
- Removing/installing, refer to Luggage compartment light -W3-, removing and installing
- - Door warning light -W30-
- Jetta only
- - Glove compartment light -W6-
- Removing/installing, refer to Glove compartment light -W6-, removing and installing (Vehicles without passenger's side airbag only)
