Instrument panel switches, removing and installing: .: Removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removing rear window defogger switch and emergency flasher switch as shown
Removing light switch -E1-, refer to LIGHT SWITCH, REMOVING AND INSTALLING
Removing adjuster for heated front seats, refer to REMOVING

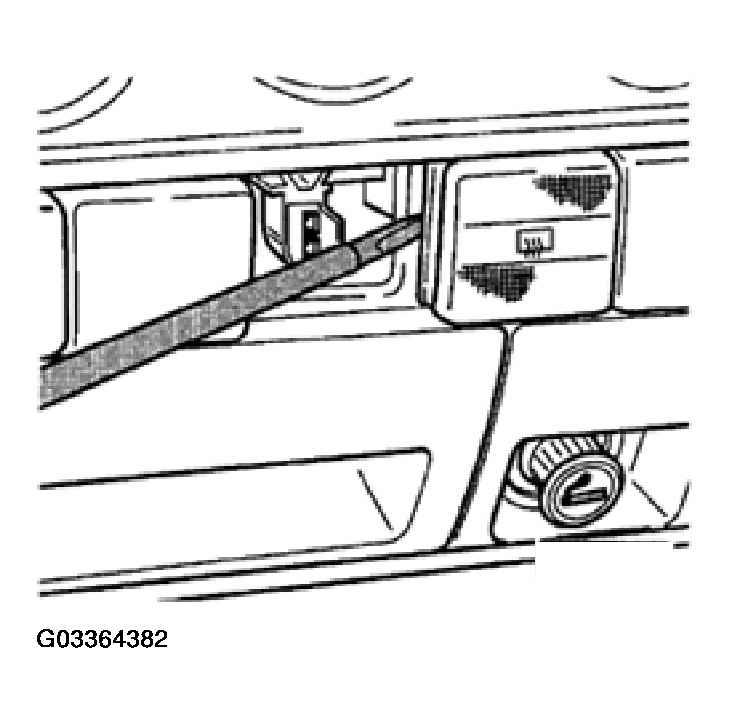

Use screwdriver to carefully pry off cover plate located above ashtray (cover for Data Link Connector, up to 07.93)

Fig 1: Prying Off Cover Plate
Courtesy of VOLKSWAGEN OF AMERICA, INC.

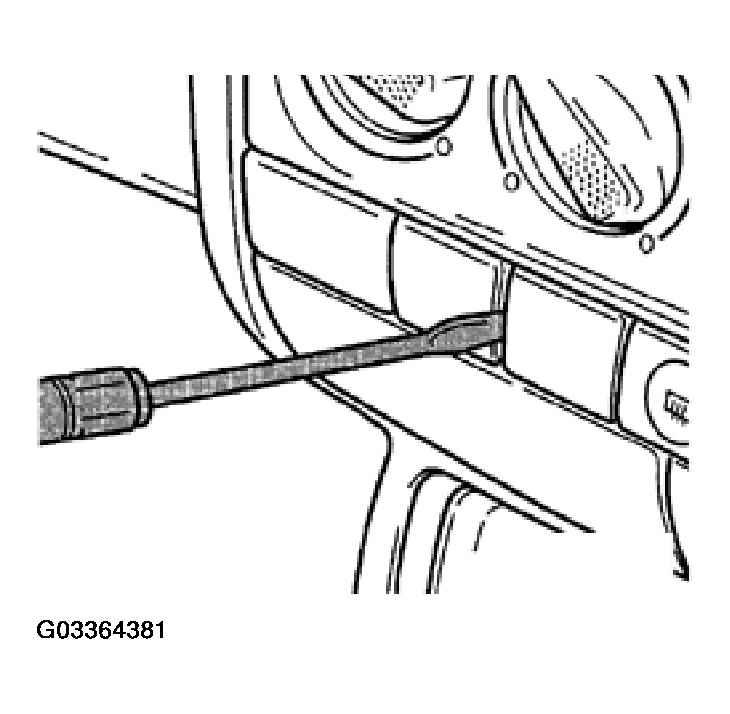

Insert the screwdriver between switch housing and instrument panel. Carefully pry switch from instrument panel.

Fig 2: Prying Switch From Instrument Panel

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove switch connector.
