Instrument panel switches, from 1996 m.y.

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1.

- Light switch -E1-
- For parking lights, headlights and fog lights
- Removing and installing, refer to LIGHT SWITCH, REMOVING AND INSTALLING
- Headlight adjuster
- Not applicable to USA/Canada
- A/C switch -E35-
- Removing and installing, refer to INSTRUMENT PANEL SWITCHES, REMOVING AND INSTALLING
- Door lock switch -E150-
- Removing and installing, refer to REMOVING
- Rear window defogger switch -E15-
- Removing and installing, refer to INSTRUMENT PANEL SWITCHES, REMOVING AND INSTALLING
- Window lockout switch -E39- with left rear window switch -E53 - and right rear window switch -E55 -
- Jetta only
- Removing and installing, refer to INSTRUMENT PANEL SWITCHES, REMOVING AND INSTALLING
- Adjuster for heated driver's seat -E94- and adjuster for heated passenger seat -E95 -
- Jetta only
- Removing and installing, refer to REMOVING

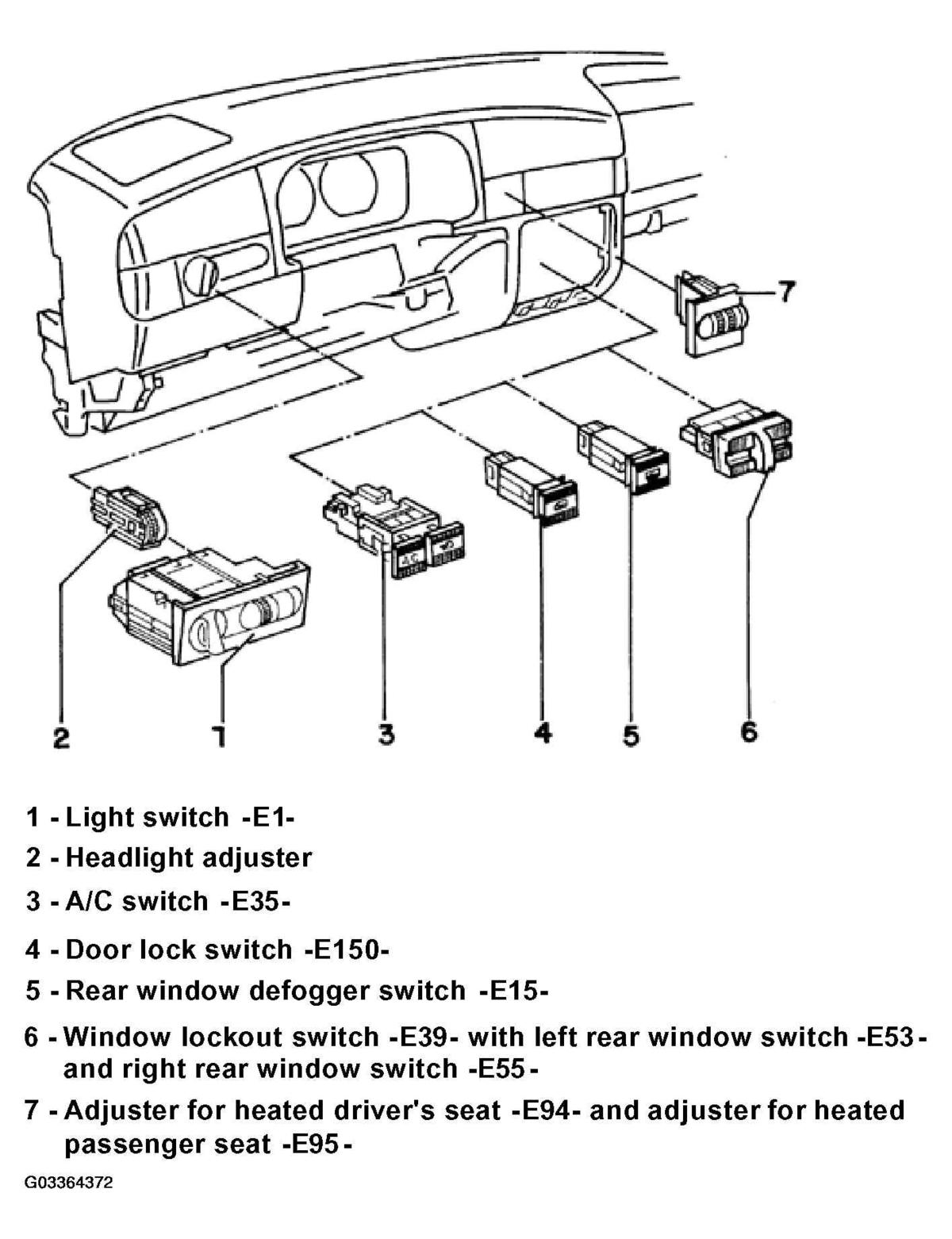

Fig 1: Identifying Instrument Panel Switches Location (From 1996 m.y.)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
