Alarm system control module -J284-, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Remove driver's side instrument panel trim.
Refer to INSTRUMENT TRIM, REMOVING .
- Disconnect 6-pin and 10-pin connectors from alarm system control module -J284-, located behind bracket on left A -pillar.
Vehicles with cruise control:
- Disconnect 12-pin connector from cruise control, control module -J213-, located behind bracket on left A -pillar.
NOTE:
The alarm system control module -J284- and cruise control, control module -J213- are located on the same mounting plate.

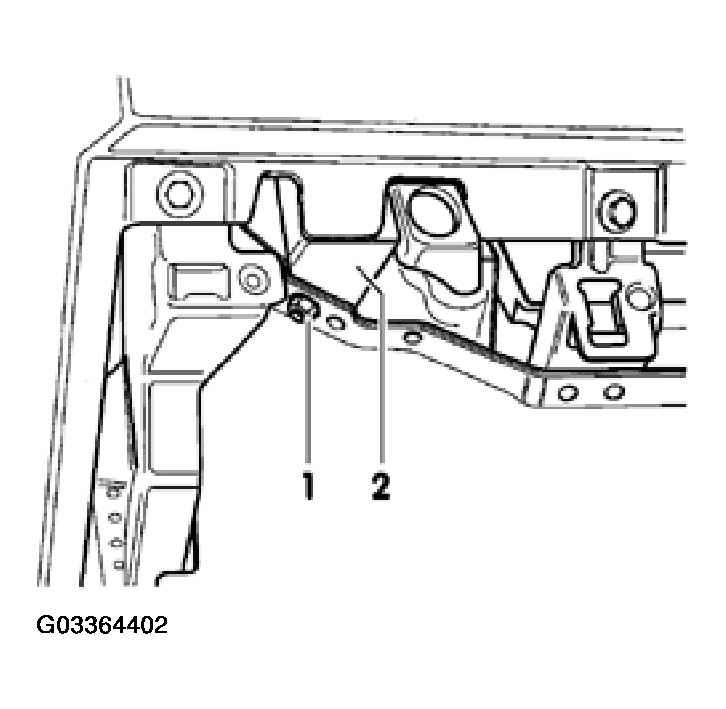

- Remove nut -1- from assembly carrier.
- Pull mounting plate locking lugs out from bracket and remove mounting plate with control module -2-.
- Remove control module mounting bolts from mounting plate and remove control module.
Install in reverse order of removal.
