Lock cylinder, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove steering lock housing. Refer to STEERING COLUMN, STEERING COLUMN TUBE AND STEERING WHEEL, SERVICING .
Mark steering lock housing for hole at intersection of points -a- and -b-.
- Dimension -a- = 12 mm (15/32 in.)
- Dimension -b- = 10 mm (25/64 in.)

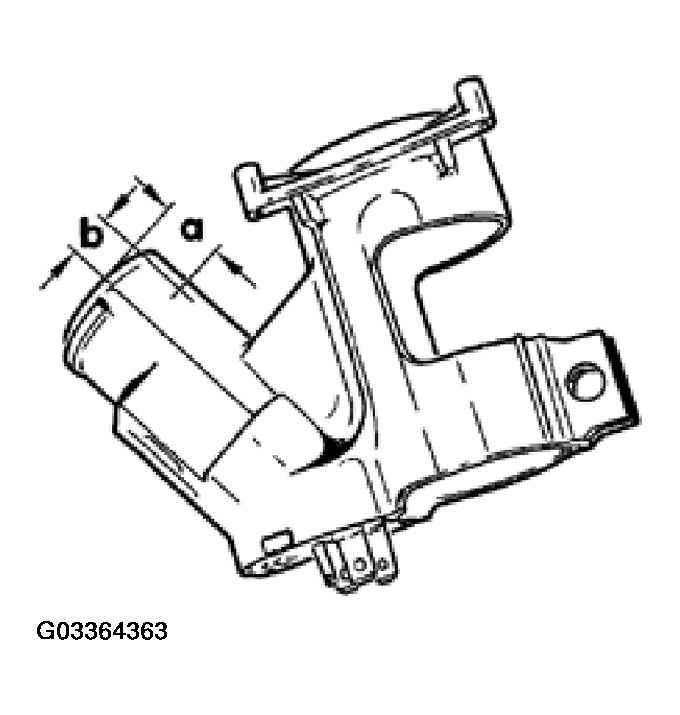

Fig 1: Marking Steering Lock Housing For Hole At Intersection Of Points -a- And -b-
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Drill 3 mm (1/8 in.) diameter hole into steering lock housing at mark until lock cylinder stop spring is visible.
Hole depth: approx. 3 mm (1/8 in.)
Compress stop spring using opposite end of drill and pull out lock cylinder.
