Brake lights, taillights, back-up lights and turn signals: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

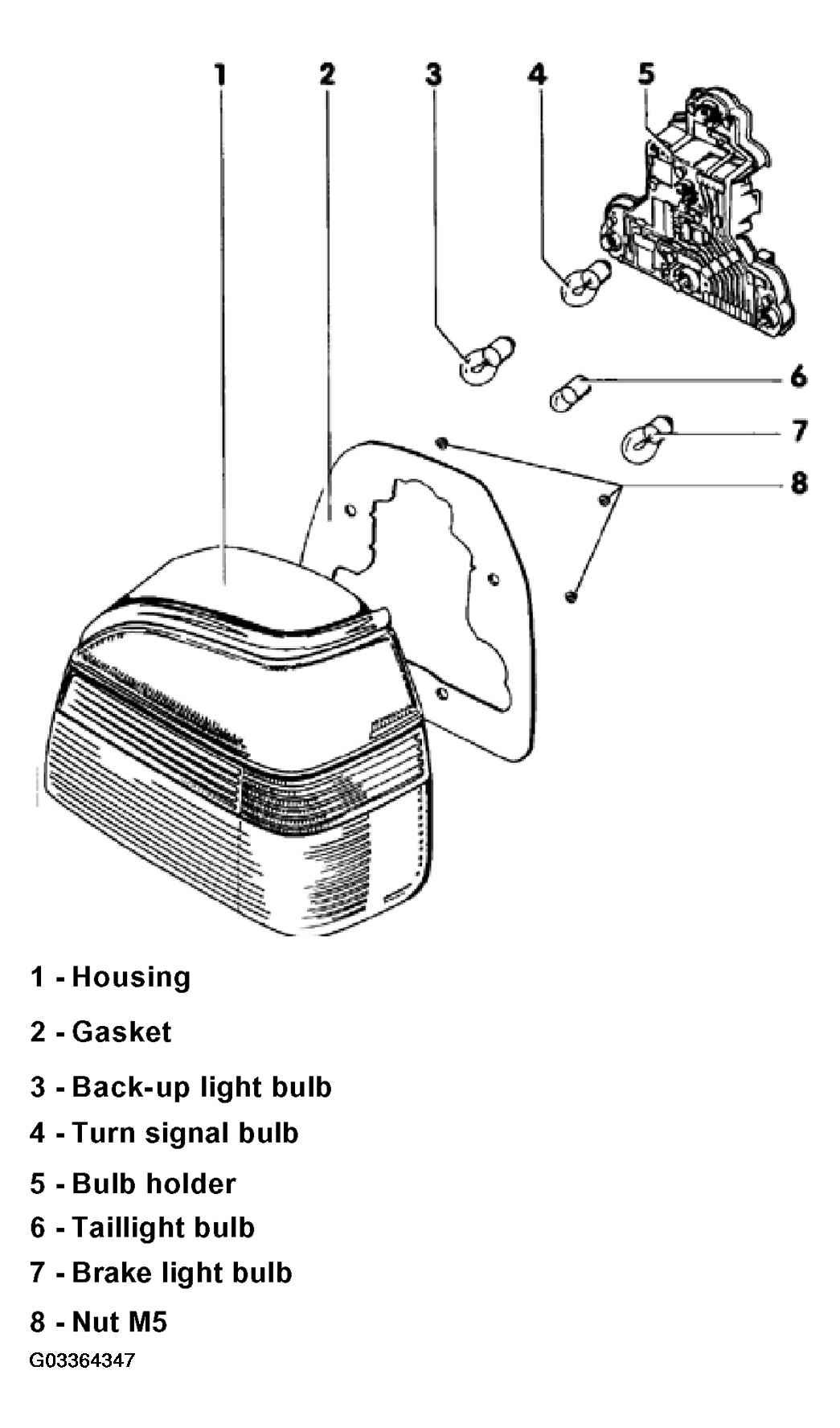

The following list refers to items in Fig 1.
- Housing
- Gasket
- Back-up light bulb
- 12 V/21 W
- Turn signal bulb
- 12 V/21 W
- Bulb holder
- Removing, refer to Rear light bulb holder, removing and installing
- Taillight bulb
- 12 V/10 W
- Brake light bulb
- 12 V/21 W
- Nut M5
