Front Wiper/Washer System
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

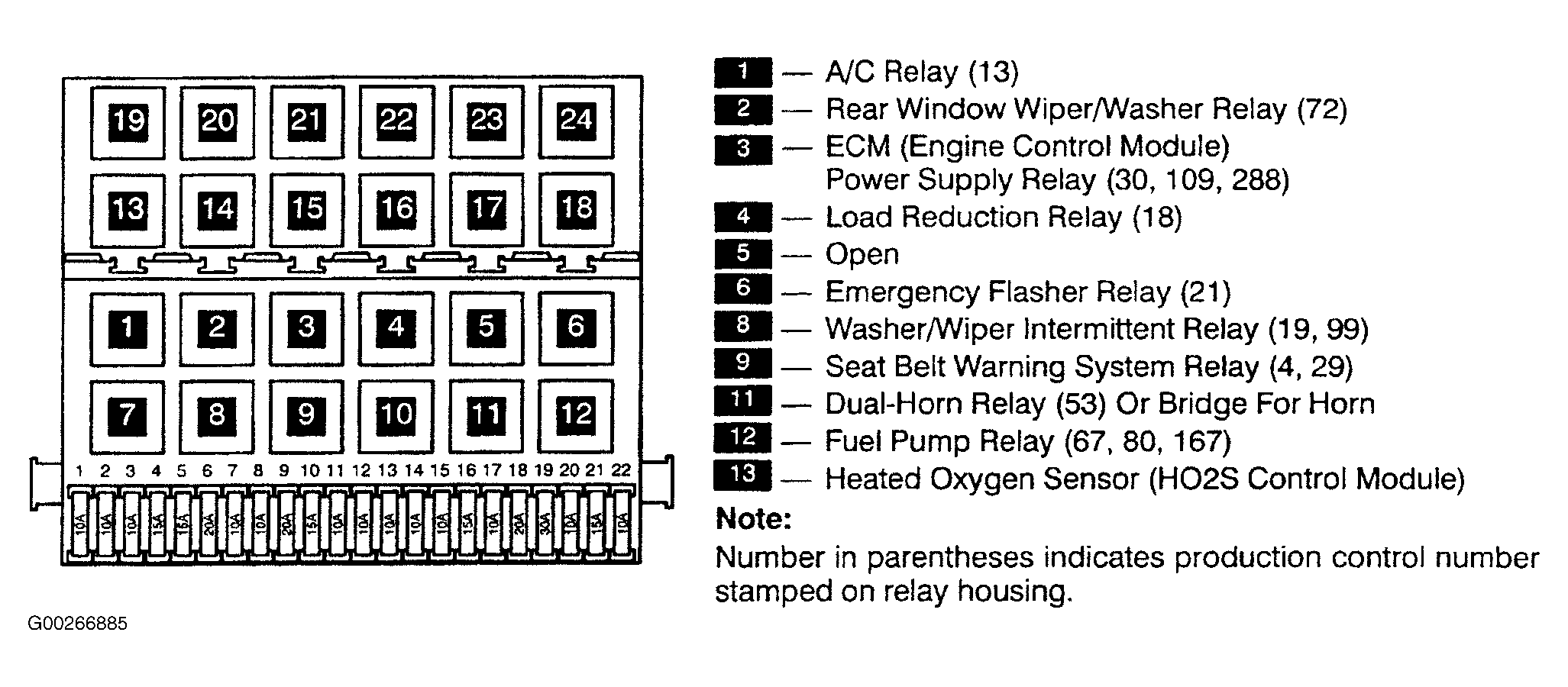

- Ensure fuse No. 5 (15-amp) is okay. Ensure wiper arms are in park position. Remove wiper/washer intermittent relay, stamped with production control number "19" or "99" (depending on equipment options), from relay position No. 8.
- Remove rear window wiper/washer relay, stamped with production control number "72", from relay position No. 2 (position may vary on station wagon). Install Test Adapter (VAG 1466/5) into relay position No. 8. Connect Electrical Circuit Tester (VAG 1466) to test adapter.

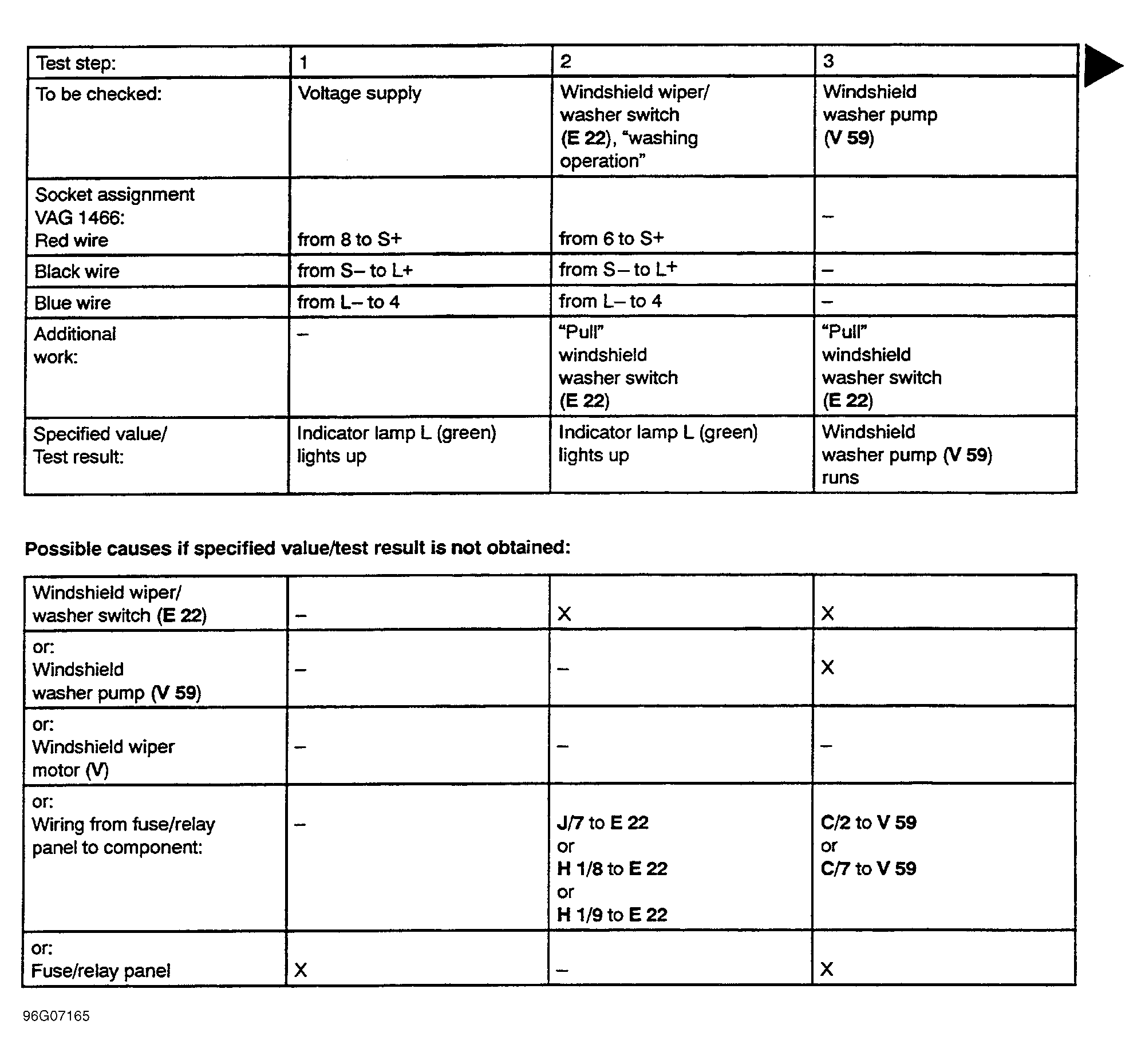

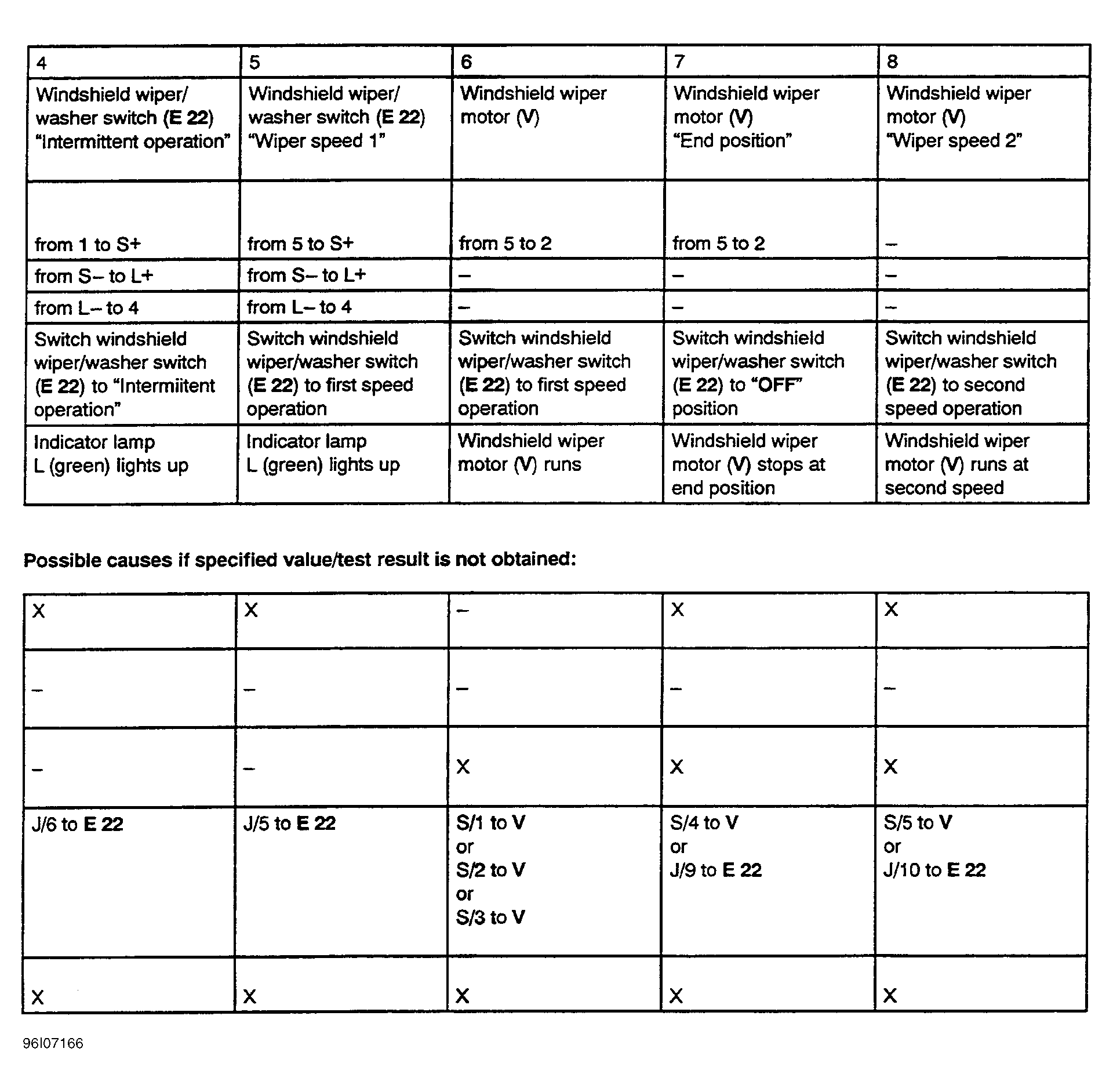

- Using wiring diagrams, perform trouble shooting procedure following instructions in trouble shooting tables. See Fig 2 and Fig 3. If specified values/test results are obtained, go to the next test step shown across top of table. Disconnect test leads from electrical circuit tester after each step.
- If specified values/test results are not obtained, check item(s) listed in "Possible causes if specified value/test result is/was not obtained" portion of tables. If malfunction has not been eliminated after performing test steps, replace wiper/washer intermittent relay. After repairing malfunction(s), check wiper/washer system for proper operation.
