Windshield wipers, assembly: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

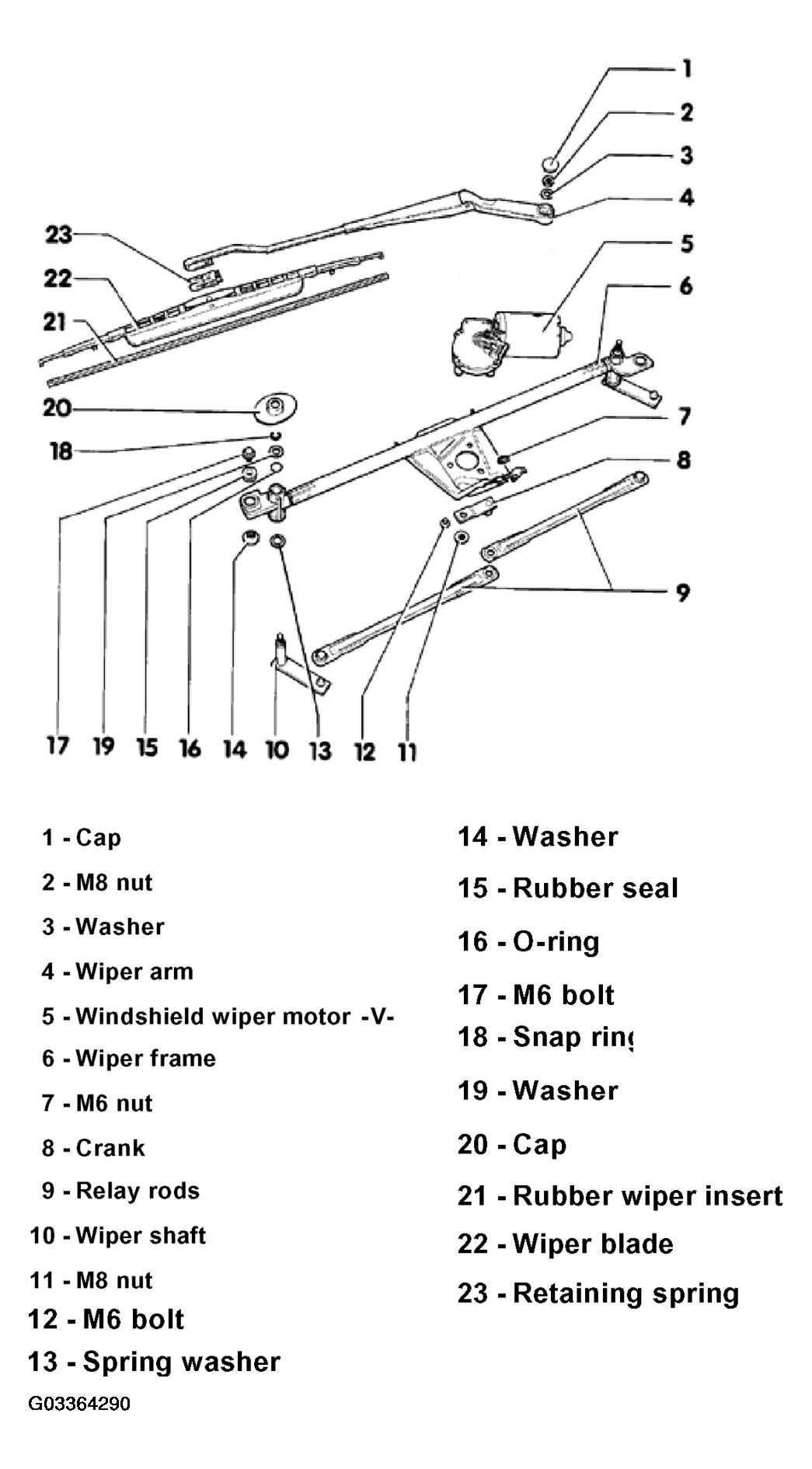

The following list refers to items in Fig 1.
- Cap
- M8 nut
- 20 N.m (15 ft lb)
- Washer
- Wiper arm
- Windshield wiper motor -V-
- Removing: first remove wiper frame - 6 -
- Wiper frame
- M6 nut
- Crank
- Installing/adjusting, refer to Installing and adjusting crank
- Relay rods
- Wiper shaft
- M8 nut
- 20 N.m (15 ft lb)
- M6 bolt
- 5 N.m (44 in lb)
- Spring washer
- Washer
- Rubber seal
- O-ring
- M6 bolt
- 5 N.m (44 in lb)
- Snap ring
- Washer
- Cap
- Rubber wiper insert
- Removing and installing, refer to RUBBER WIPER INSERTS, REMOVING AND INSTALLING
- Wiper blade
- Adjusting, refer to Adjusting wiper blade rest position
- Retaining spring
