Windshield washer pump -V59- hose connections

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

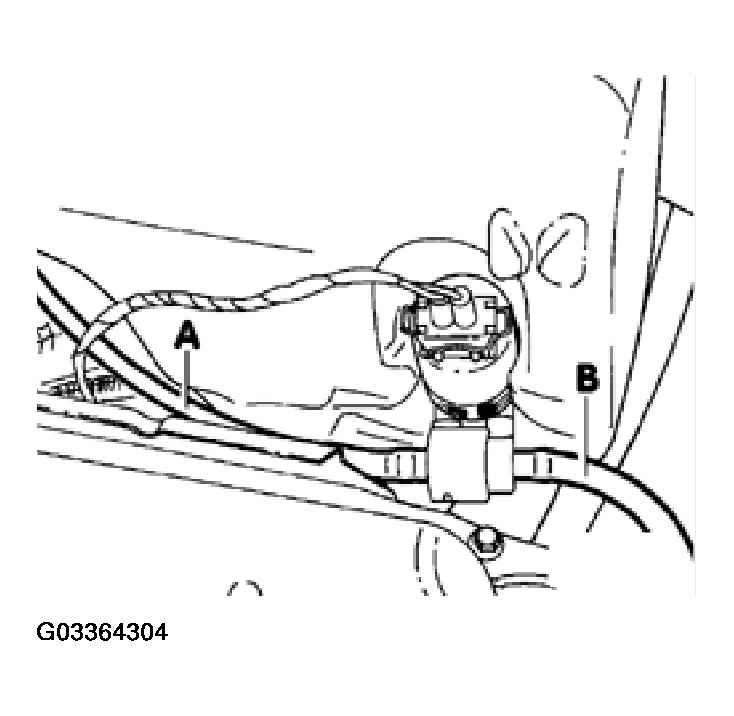

Fig 1: Identifying Windshield Washer Pump Hose Connections
G03364304Courtesy of VOLKSWAGEN OF AMERICA, INC.
  1. - hose to windshield washer system
  2. - hose to rear window washer system
