Washer nozzles (up to 08.96), adjusting
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Adjust washer nozzles using special tool 3125.
NOTE:

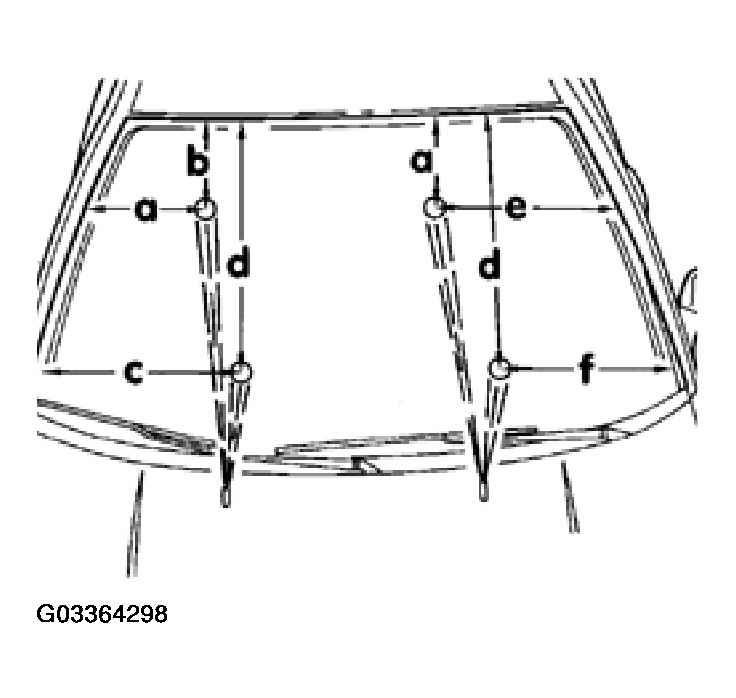

To identify the following dimensions, see Fig 1.
- - 280 mm (11.0 in.)
- - 300 mm (11.8 in.)
- - 430 mm (16.9 in.)
- - 560 mm (22.0 in.)
- - 400 mm (15.7 in.)
- - 330 mm (13.0 in.)
Tolerance = 20 mm (0.8 in.)
