Washer nozzles (from 08.96)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

A new design washer nozzle ("fan jet") was installed as a running change from 08.96 production. Spray pattern varies at different temperatures.

Fan jet washer nozzles are NOT adjustable.

Approximate spray pattern/temperature ranges: see Fig 1.

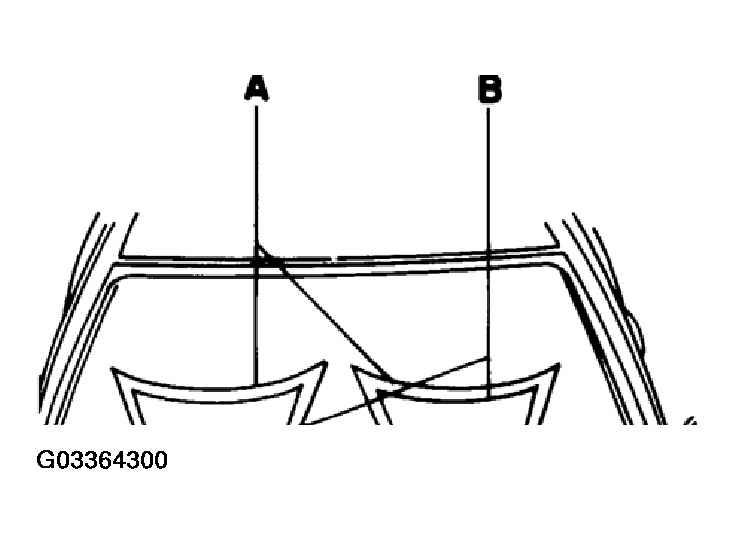

Fig 1: Identifying Spray Pattern (From 08.96)
G03364300Courtesy of VOLKSWAGEN OF AMERICA, INC.

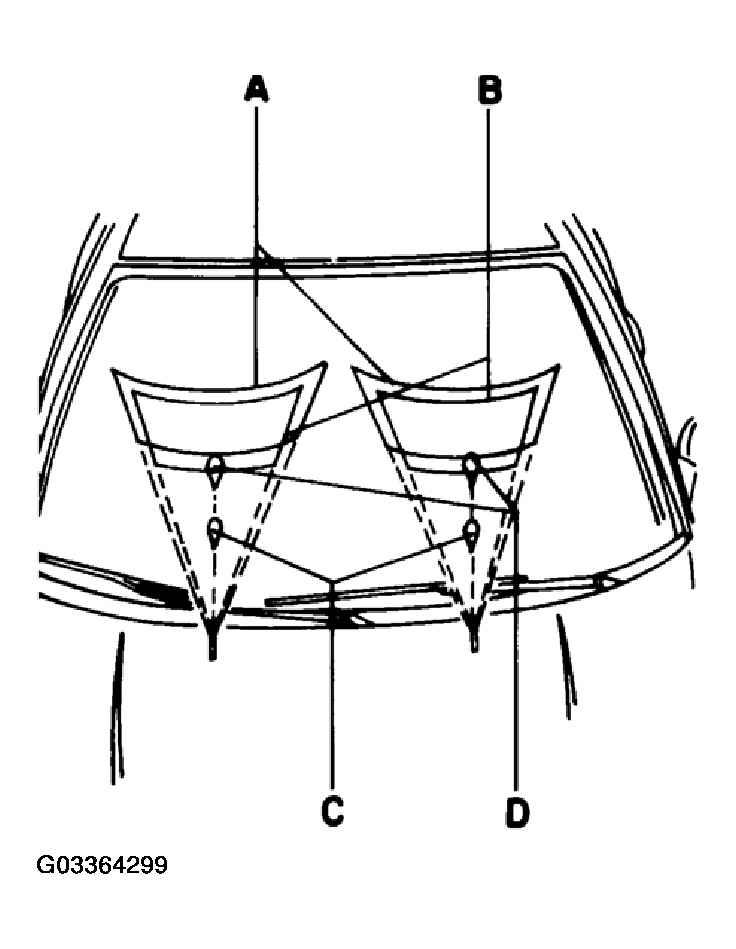

Fig 2: Adjusting Washer Nozzles (From 08.96)
G03364299Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE: To identify the following dimensions, see Fig 1.
  1. - 20°C (68°F)
  2. - 0°C (32°F)
  3. - -20 °C (14 °F)
  4. - -10 °C (4 °F)


A new design washer nozzle ("fan jet") was installed as a running change from 08.96 production.

Spray pattern varies as temperatures change.

Fan jet washer nozzles are not adjustable.

Approximate spray pattern/temperature ranges:

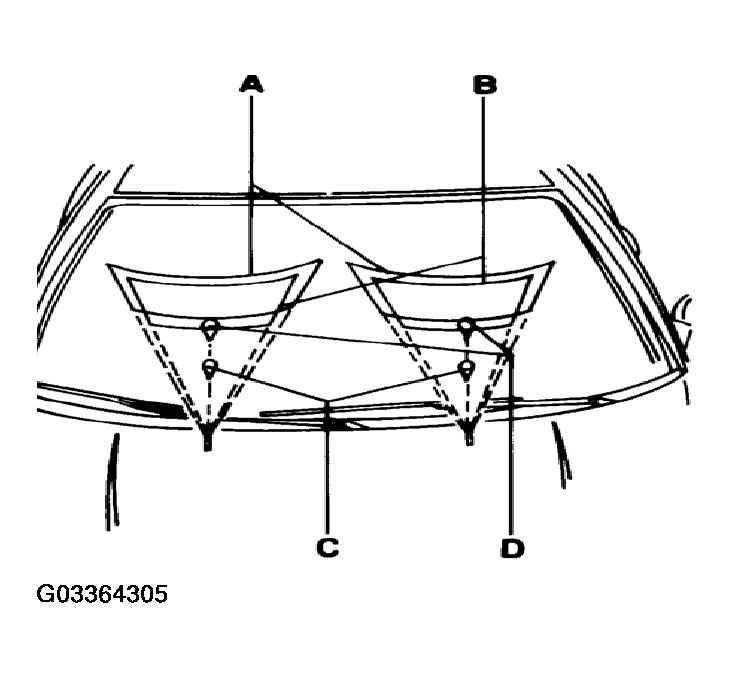

Fig 1: Identifying Washer Nozzles Spray Pattern (From 08.96)
G03364305Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE: To identify the following dimensions, see Fig 1.
  1. -20 °C (68 °F)
  2. -0 °C (32 °F)
  3. -10 °C (14 °F)
  4. -20 °C (4 °F)
