Checking washer nozzles

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

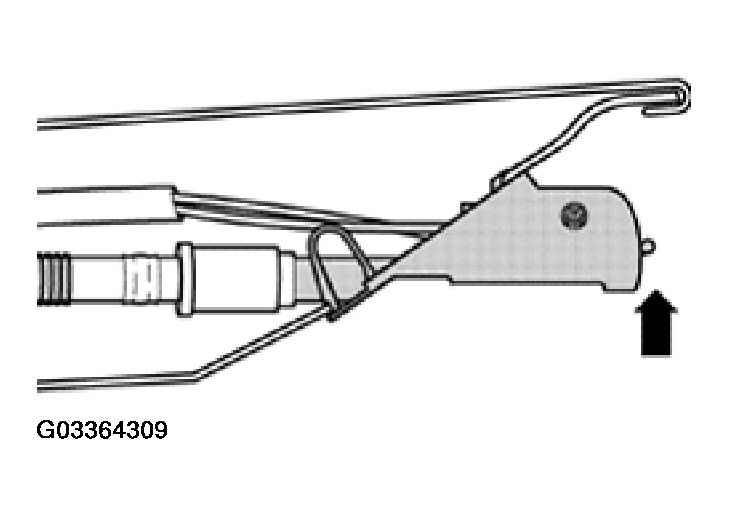

Fig 1: Adjusting Nozzles Height

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Nozzles are preset but small height adjustment can be made.

Using screw driver, turn eccentric on nozzle in direction of arrow to move spray field on windshield upward.

The spray jet must not be cleaned opposite to direction of spray, e.g. blown through from front.

From m.y. 2000 a new adjustable spray jet is used.

Fig 2: Turning Eccentric On Nozzle Using Screw Driver

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Move spray jet with your finger in direction of arrow.

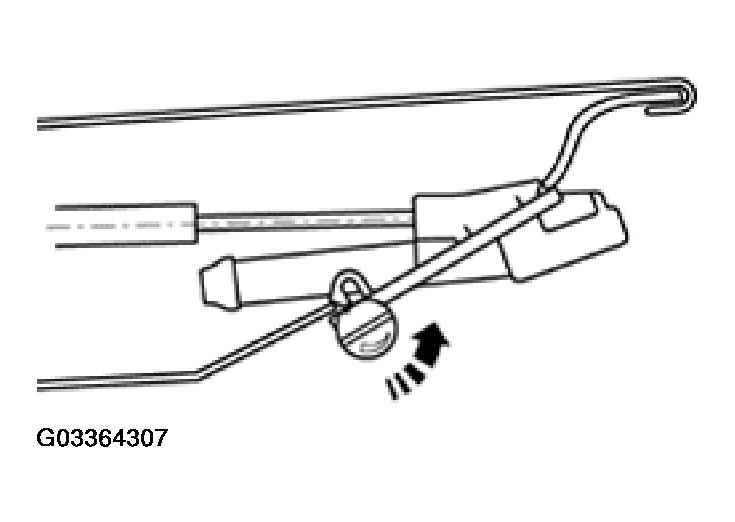

Fig 3: Moving Spray Jet

Courtesy of VOLKSWAGEN OF AMERICA, INC.
